With the release of VCF 5.2.1 I wanted to get my lab upgraded. The release blog can be found here and the release notes are here
Please note that some of the components within the VCF will still need additional upgrading. Please read the release notes for additional details.

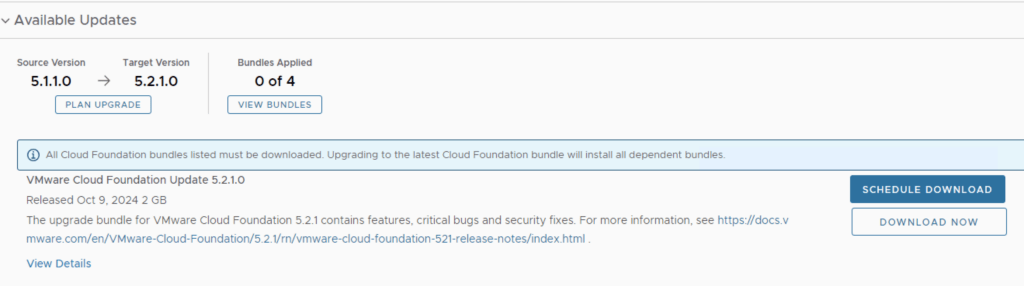

We can start by going to Inventory -> Workload Domains -> Select the domain -> Updates -> Plan Upgrade. Select VMware Cloud Foundation 5.2.1.0 -> Confirm
After we wait a couple of minutes we can click on Download Now to download the new update bundle.
If you do not see the newest releases go to Administration -> Online Depot and add a VMware Customer Connect account that has access to perform downloads.

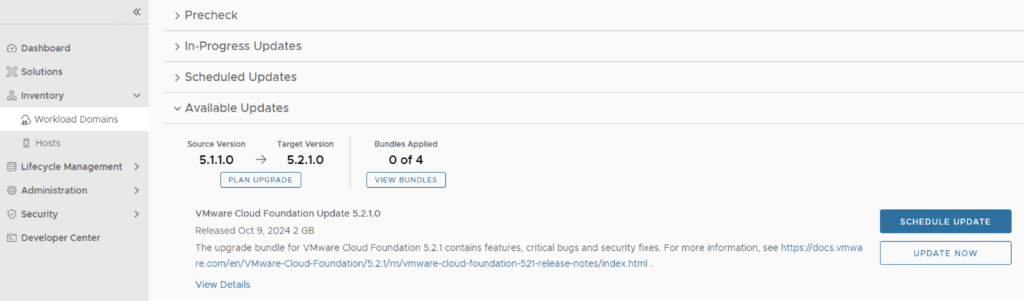

The next step is to upgrade VCF by going to Inventory -> Workload Domains -> Select the workload domain -> Updates -> Update Now

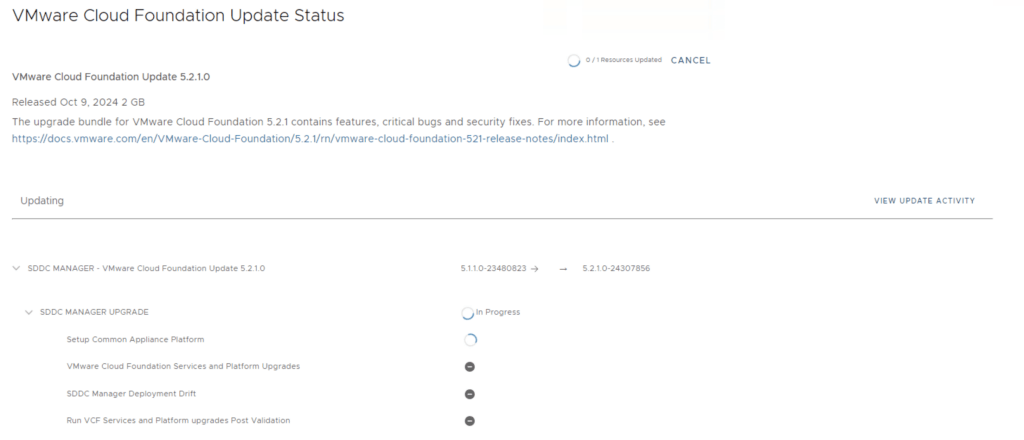

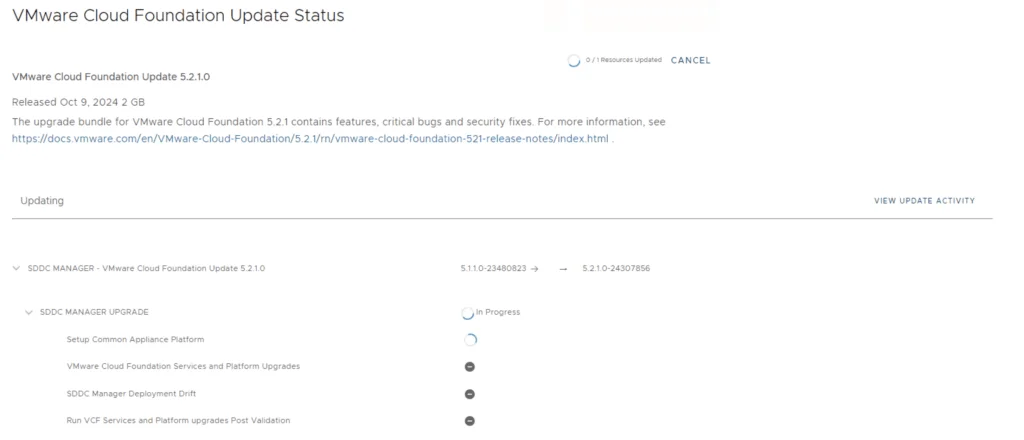

Next we are taken to the Upgrade page where we can follow the upgrade for each one of the components

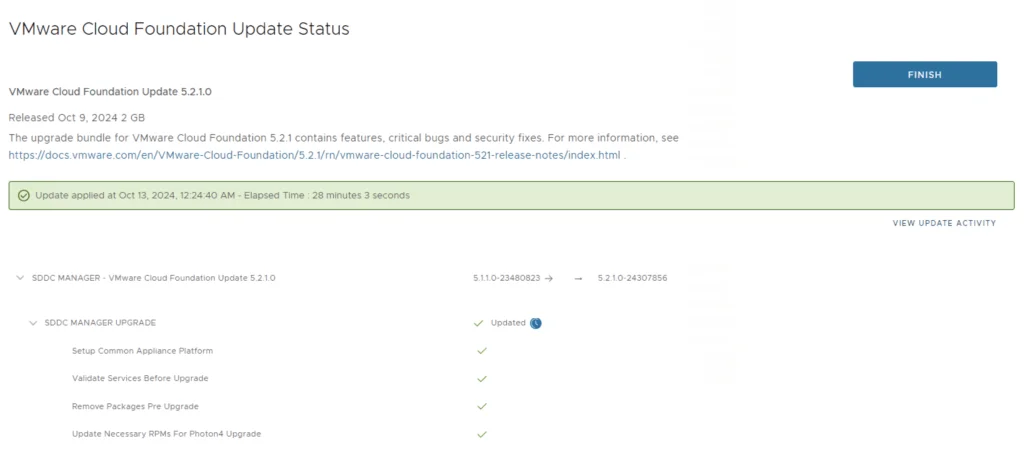

Once the upgrade is complete we can click Finish to be returned back to the main screen
Because we are changing the SDDC-Manager versions I would strongly recommend to clear cache and log back in before going forward.
Next step is to upgrade NSX-T installation to NSX-T 4.2.1.0. The release notes can be found here.

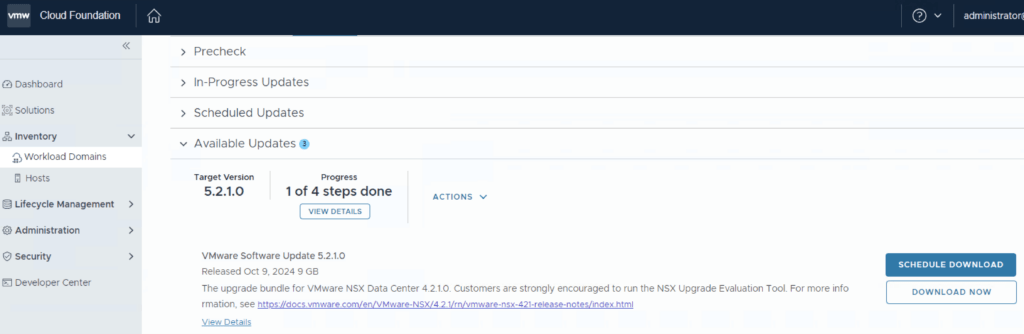

We can also download it directly from the workload domain by going to Inventory -> Workload Domains -> Select the domain -> Updates -> Download now

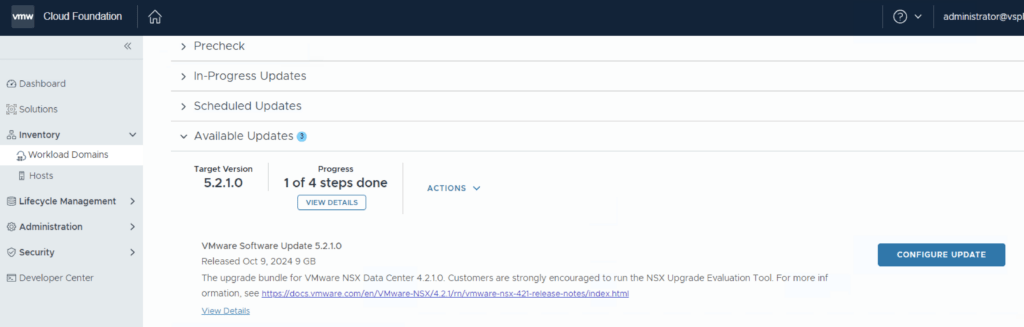

Once the download is complete we can proceed with updating the NSX components by clicking on the Configure Update button.

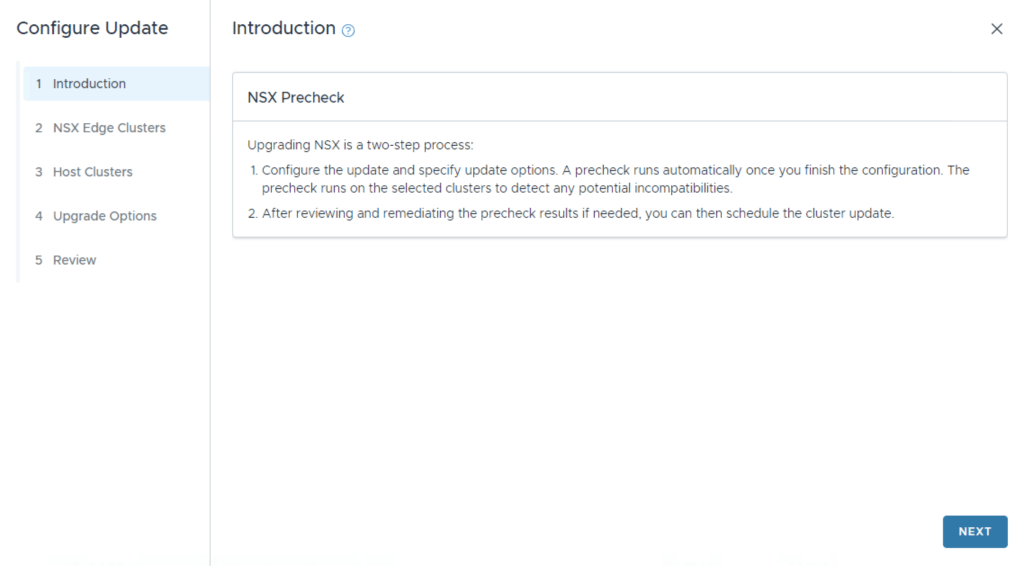

Click next

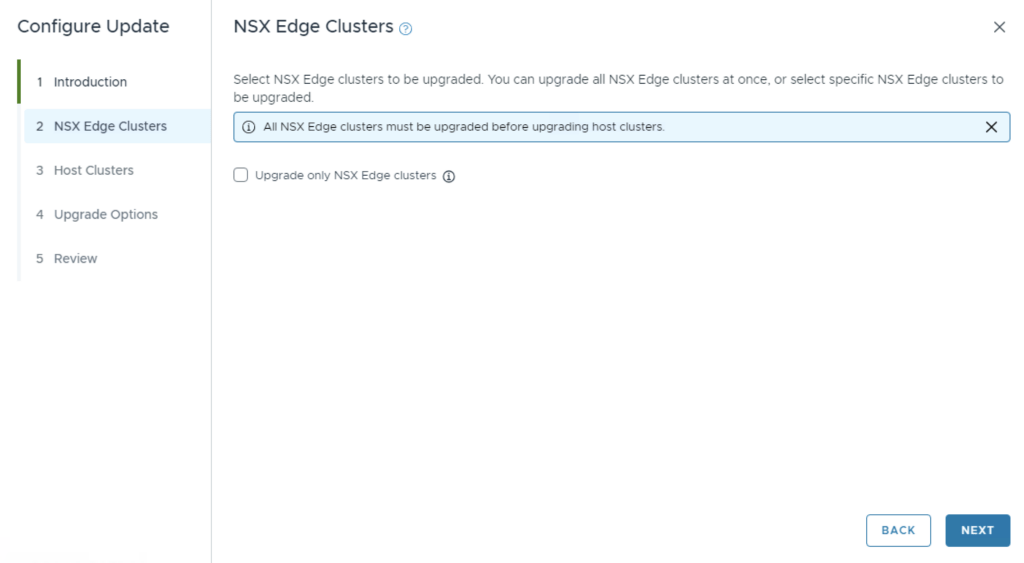

Make the proper selection and click next

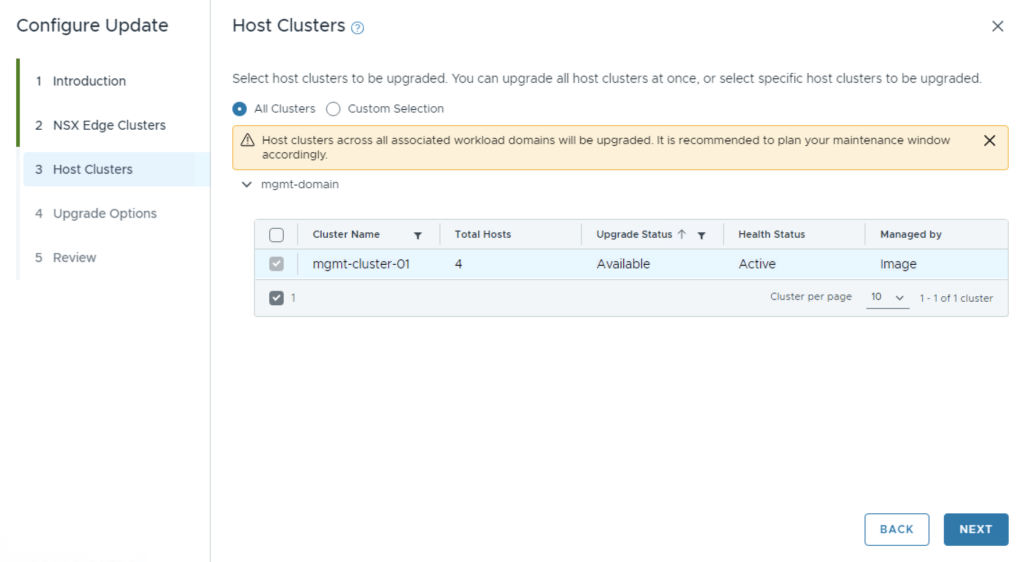

Make the proper selection and click next

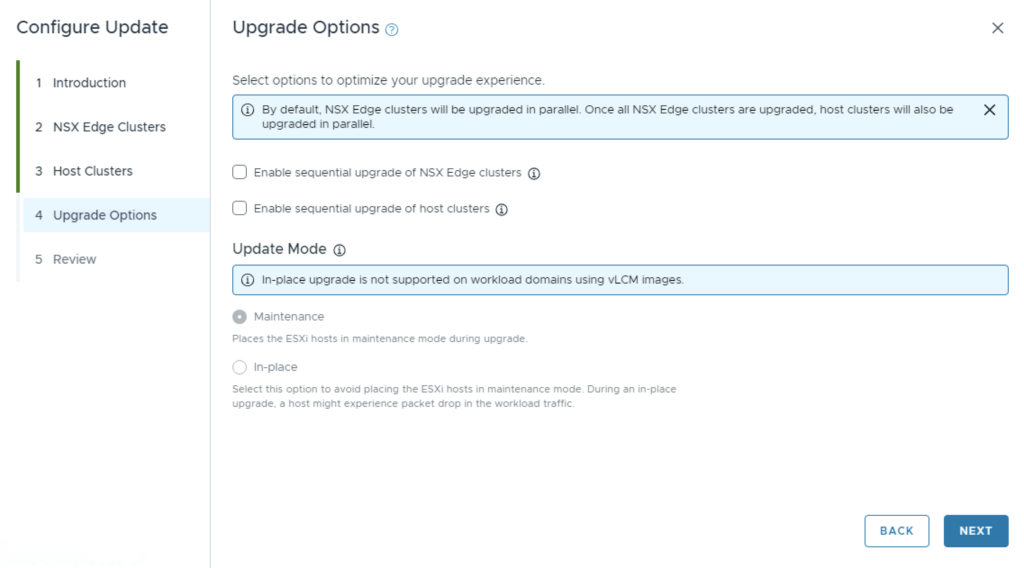

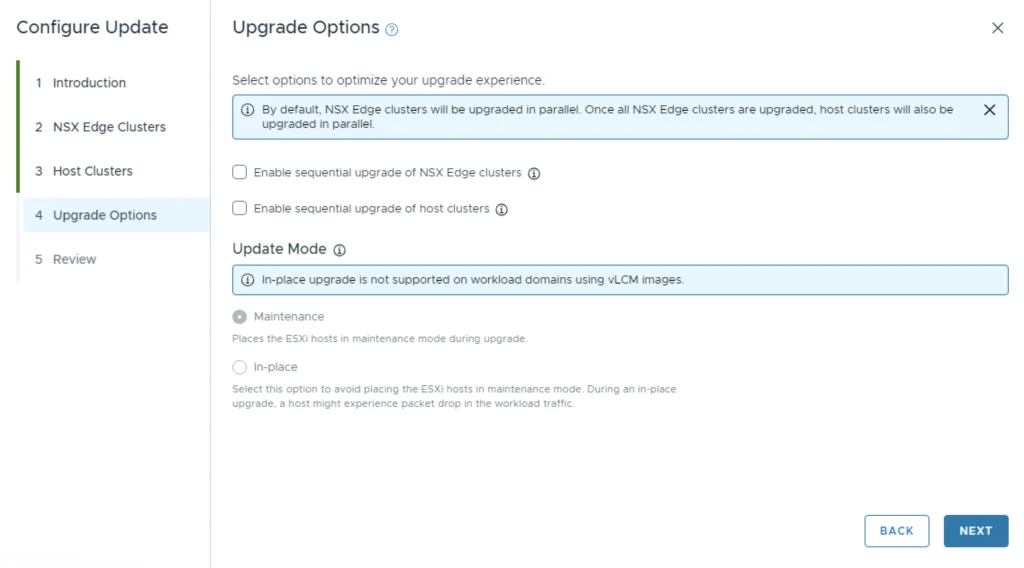

Make the proper selection and click next

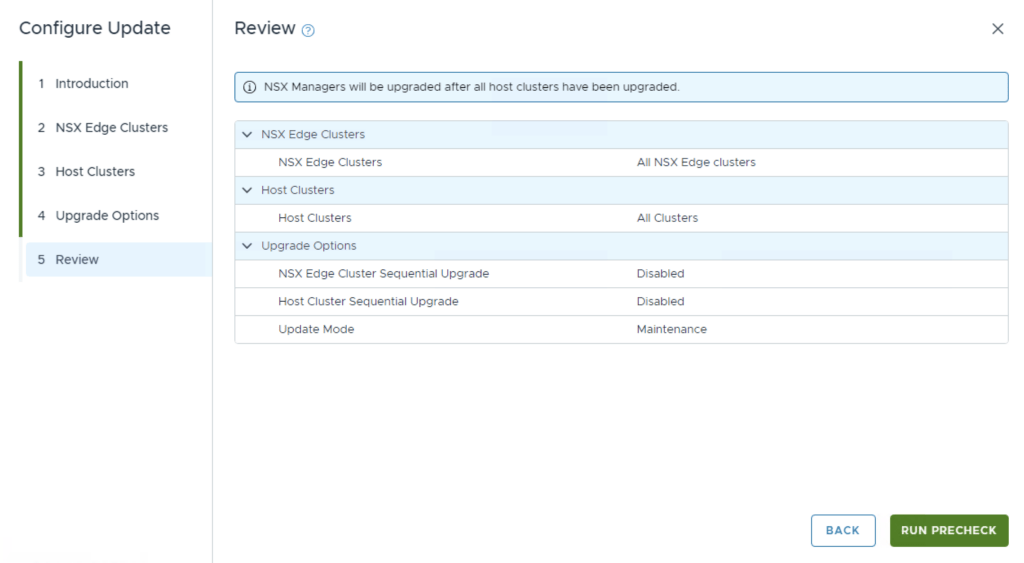

Review the options and click on Run Precheck

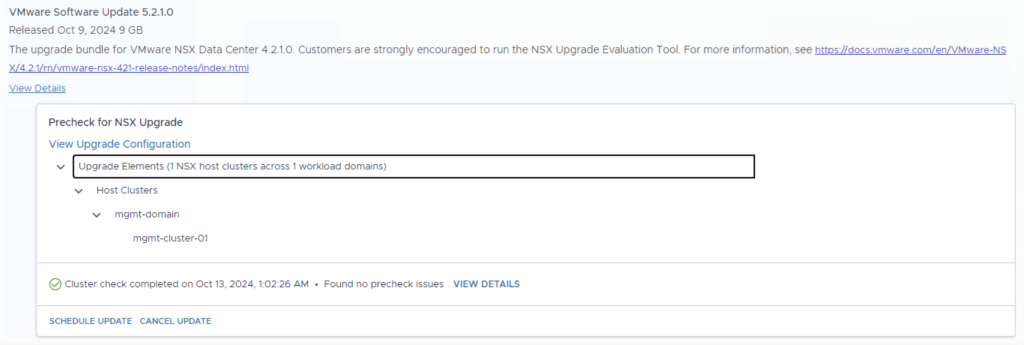

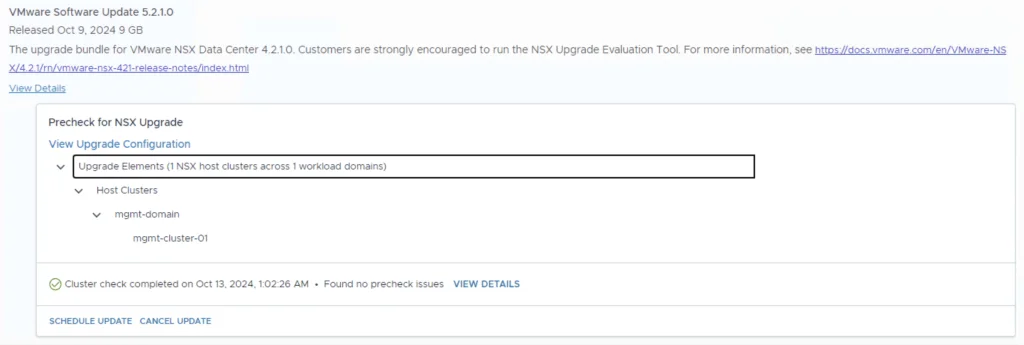

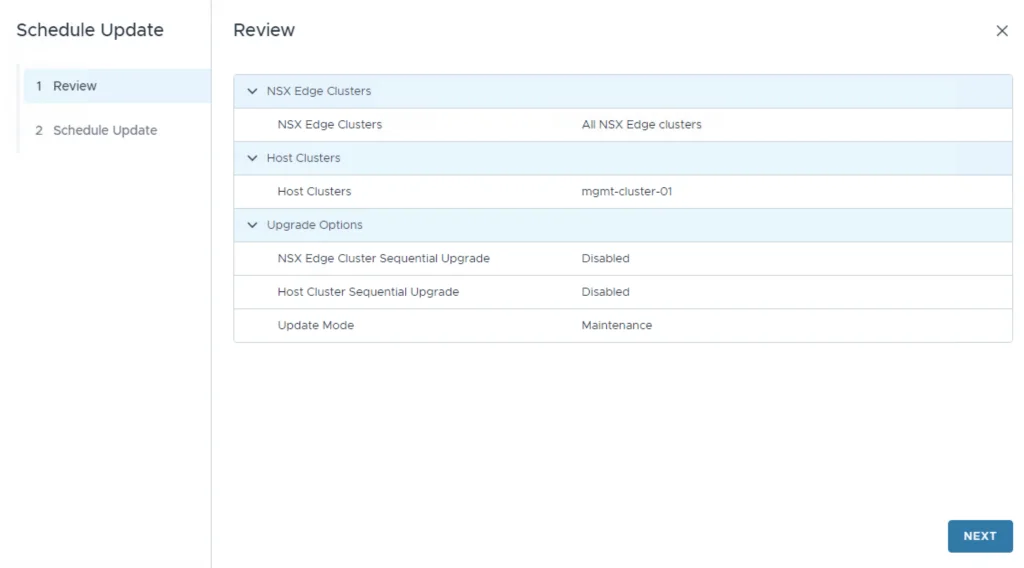

Once the Precheck is completed, we can click on Schedule update.

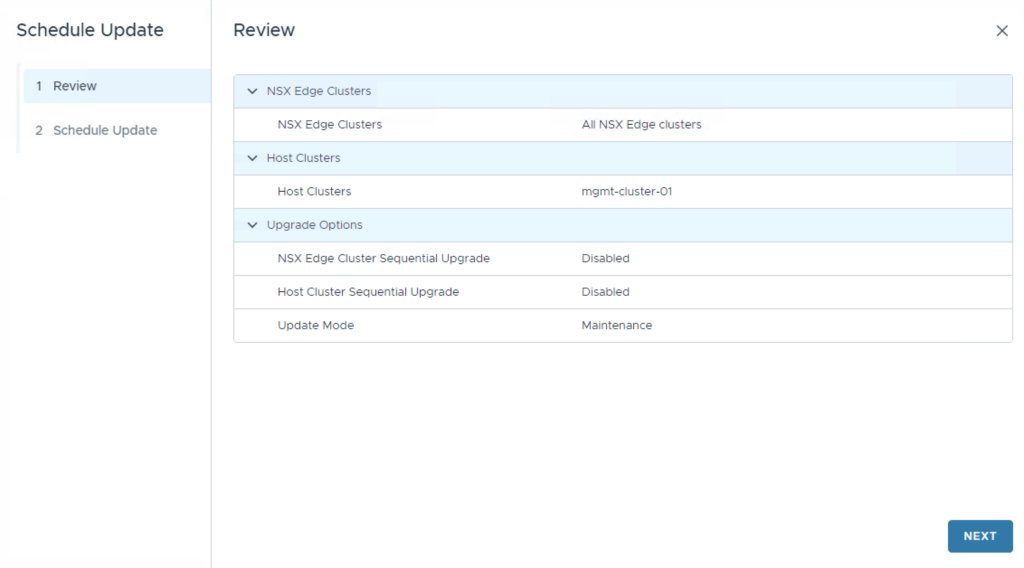

Click Next
Schedule the upgrade and click Finish

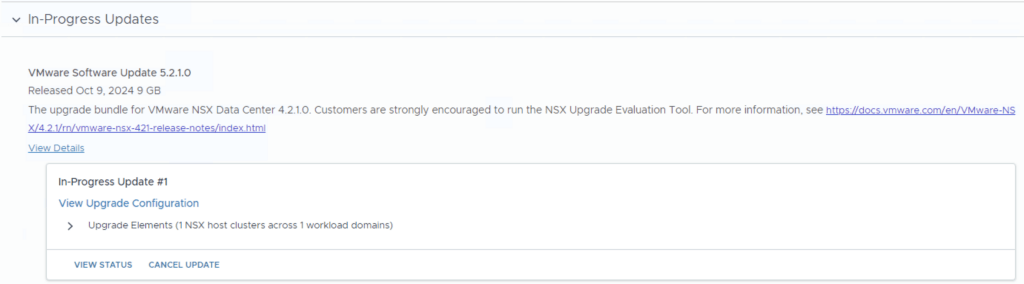

Once the upgrade has started, a few minutes later we can click on view status in order to see the upgrade steps

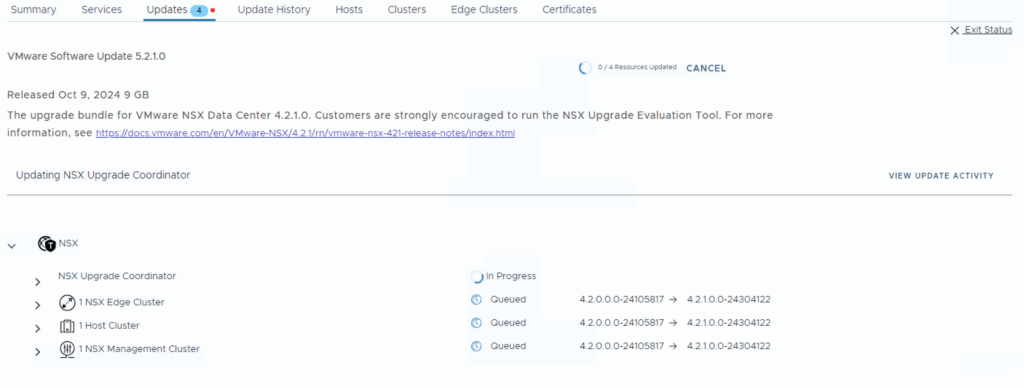

We can view the details of the upgrade

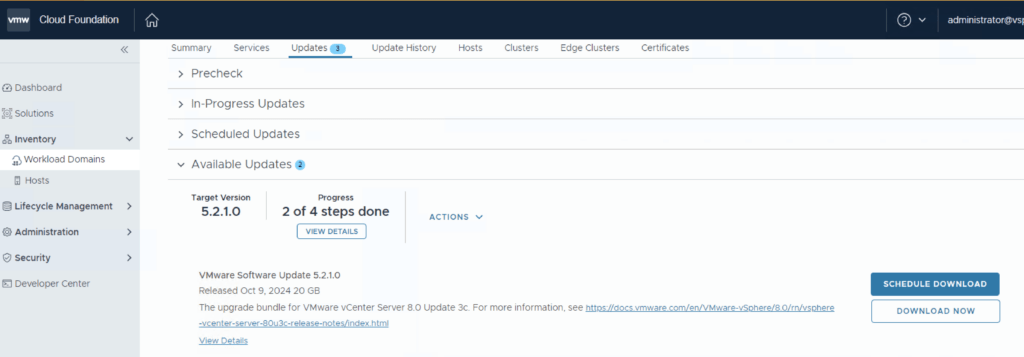

Once the upgrade is complete we can proceed with the vCenter Upgrade. VCF 5.2.1 comes with vCenter Server 8.0 Update 3c. The release notes can be found here. We can go to Inventory -> Workload Domains -> Select the workload domain -> Updates -> Under Available updates click on Download now.

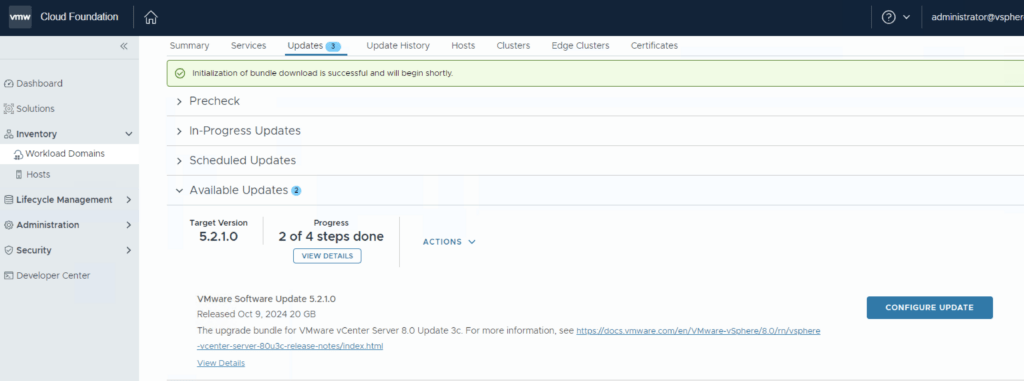

Once the download is complete we can click on Configure Update

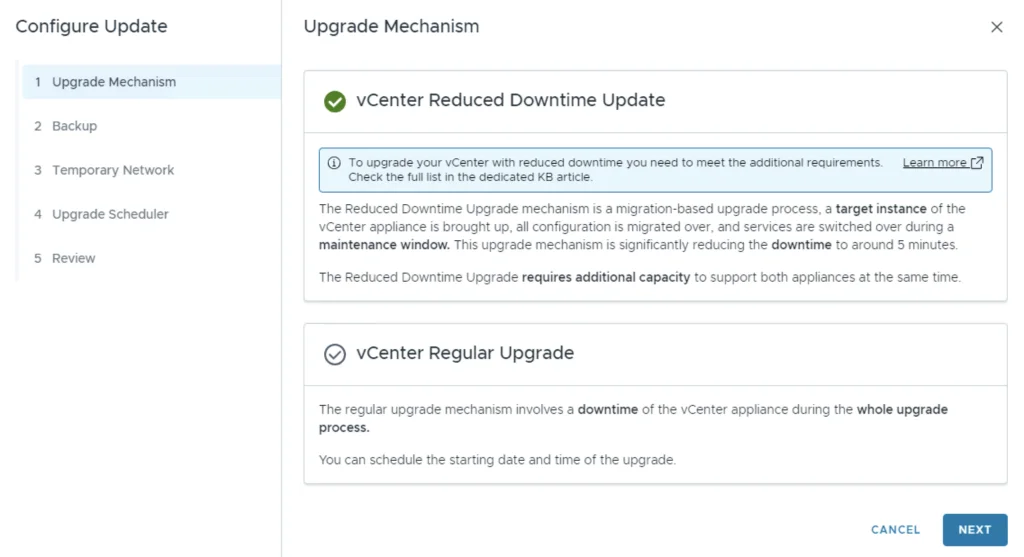

As we can see we now have 2 options. Reduced downtime which will install a target center and the migrate the data to it or an in place upgrade. Review the upgrade information and click Next.

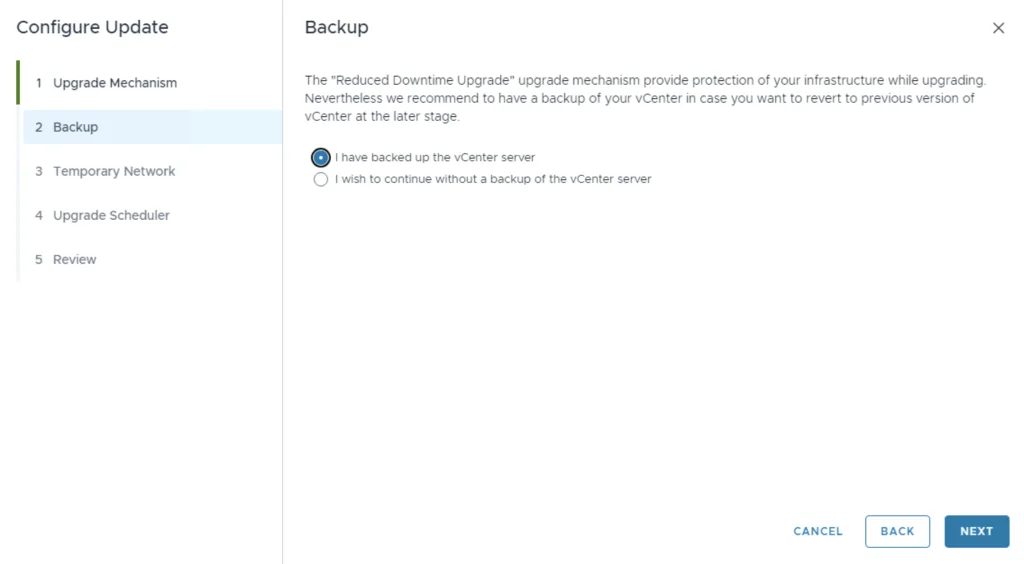

Confirm that we have a backup

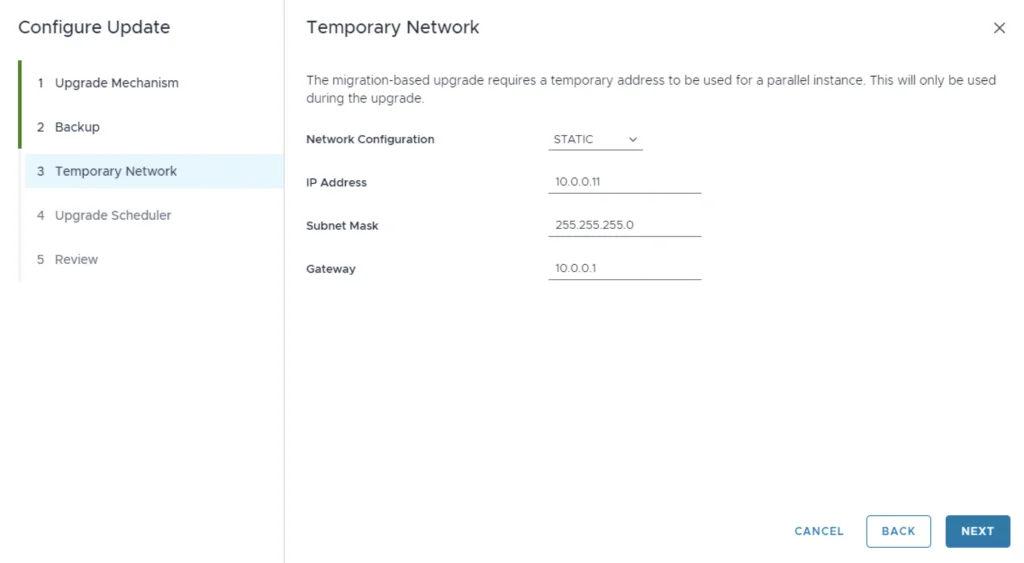

Provide a temporary network and click Next

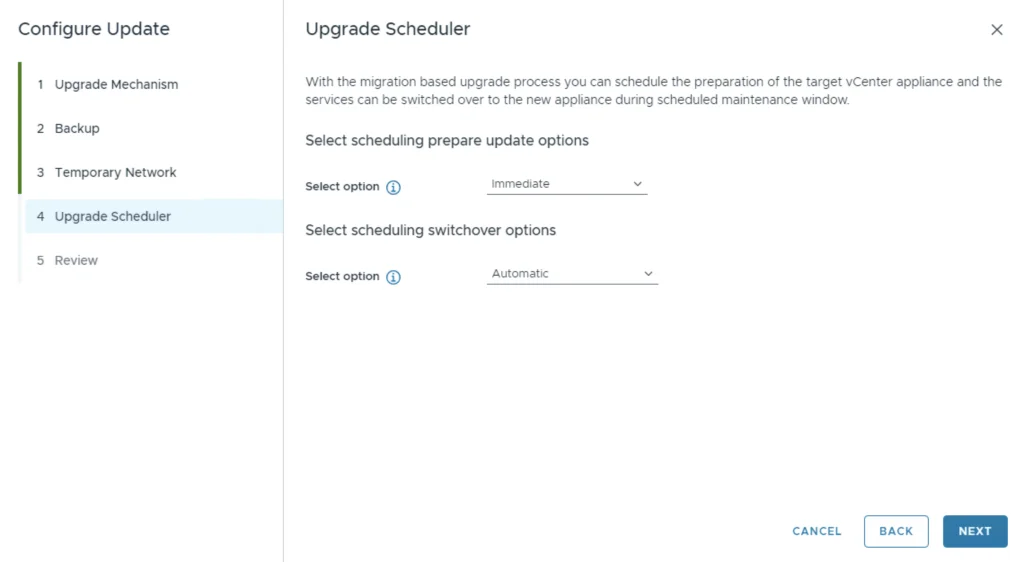

Schedule the upgrade options and click Next

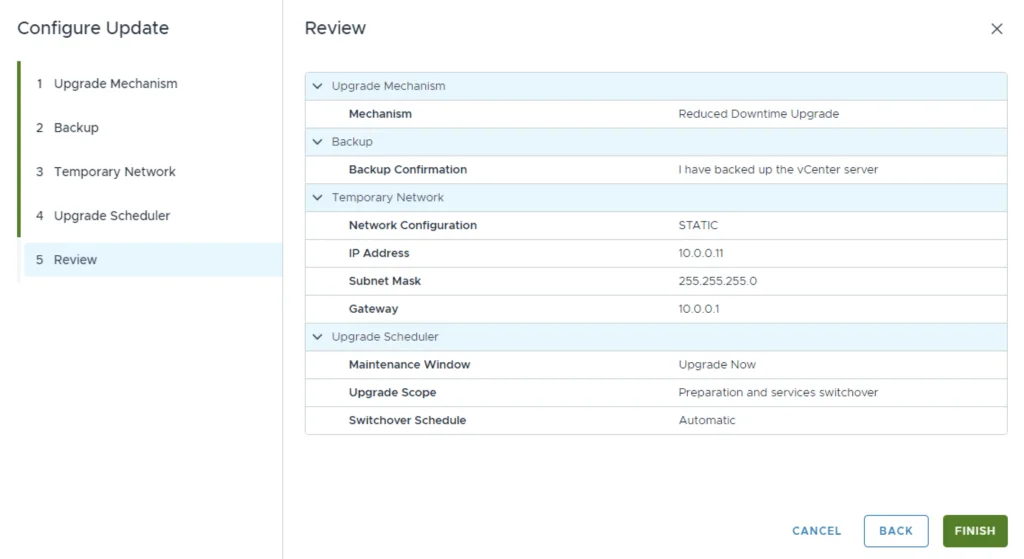

Review the upgrade selections and click Finish

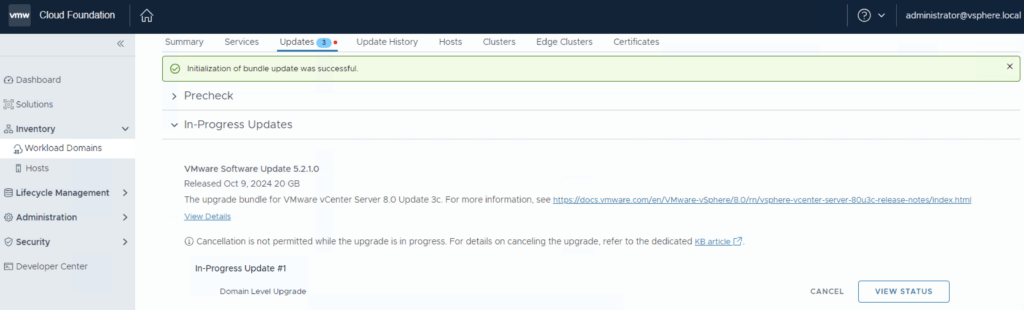

We can follow the status of the upgrade by clicking on the view status tab

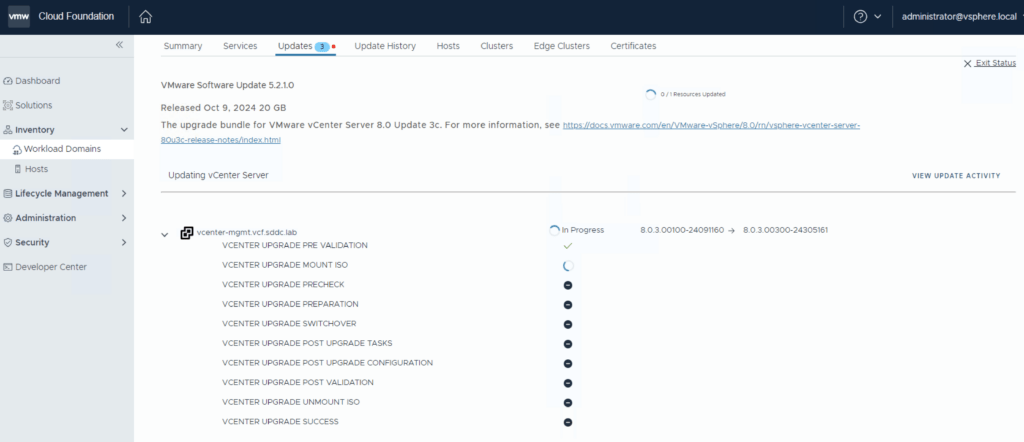

Here we can see the different components that are getting upgraded

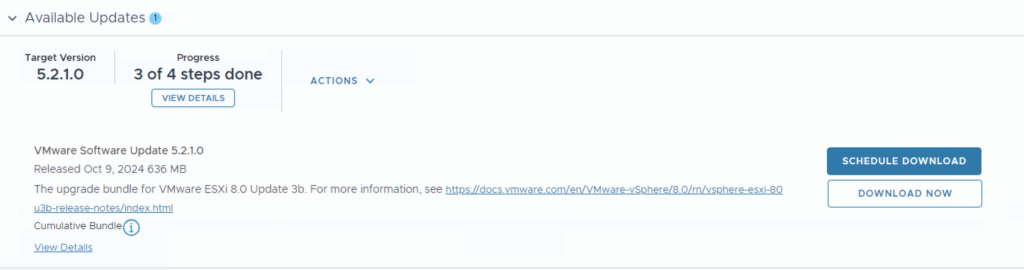

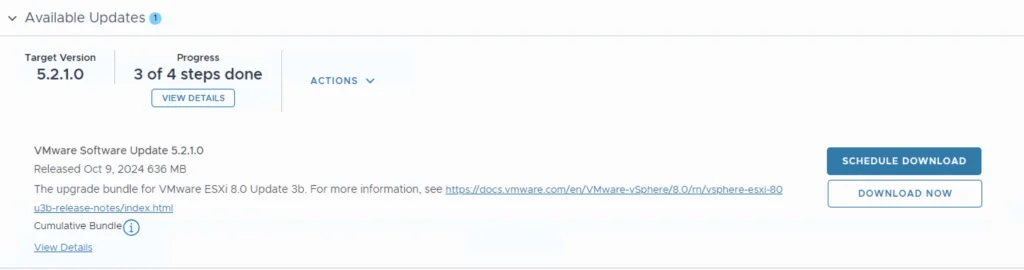

Once the upgrade is complete we are taken back to the previous page where we can see that the ESXi servers are next. The release notes for ESXi Update 3b can be found here. Click on Download Now.

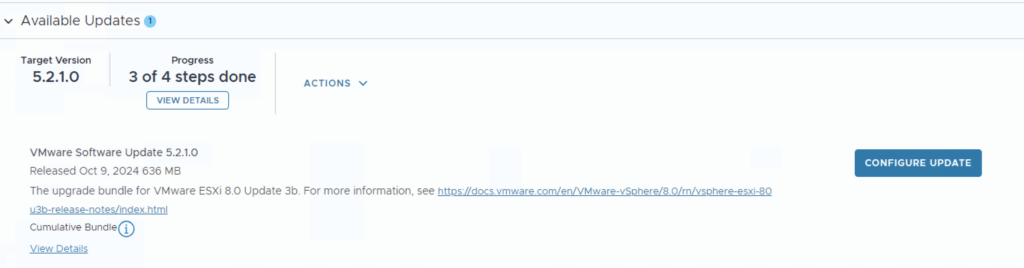

Once the download is complete we can configure the upgrade options by clicking configure upgrade

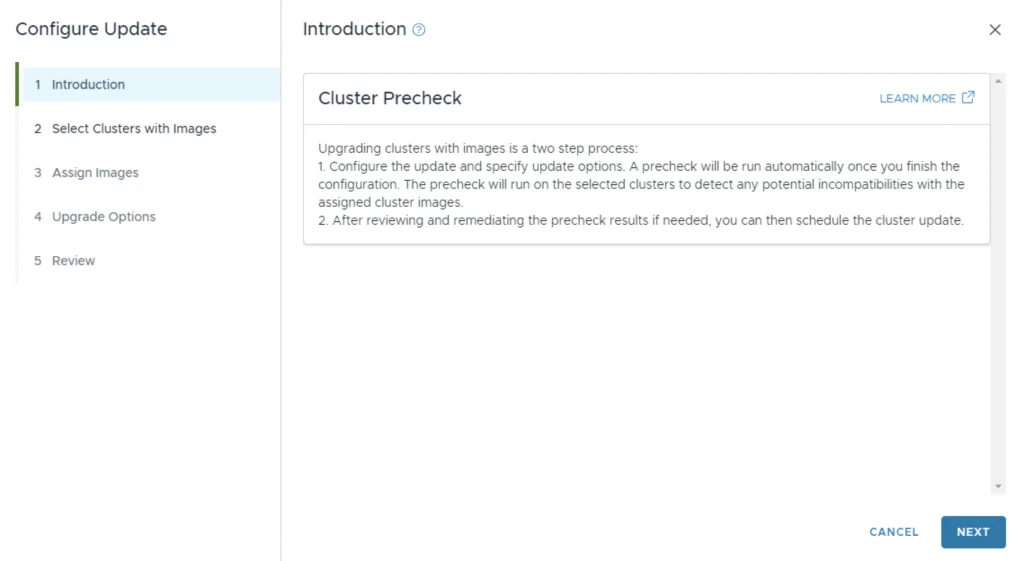

We get presented with the upgrade instructions. Click Next

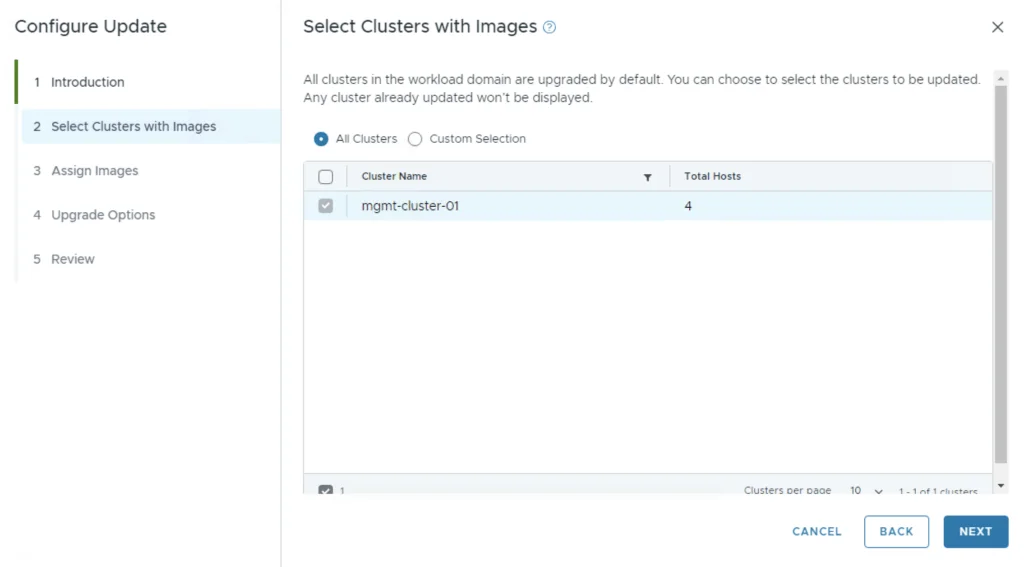

Select a cluster with images and click Next

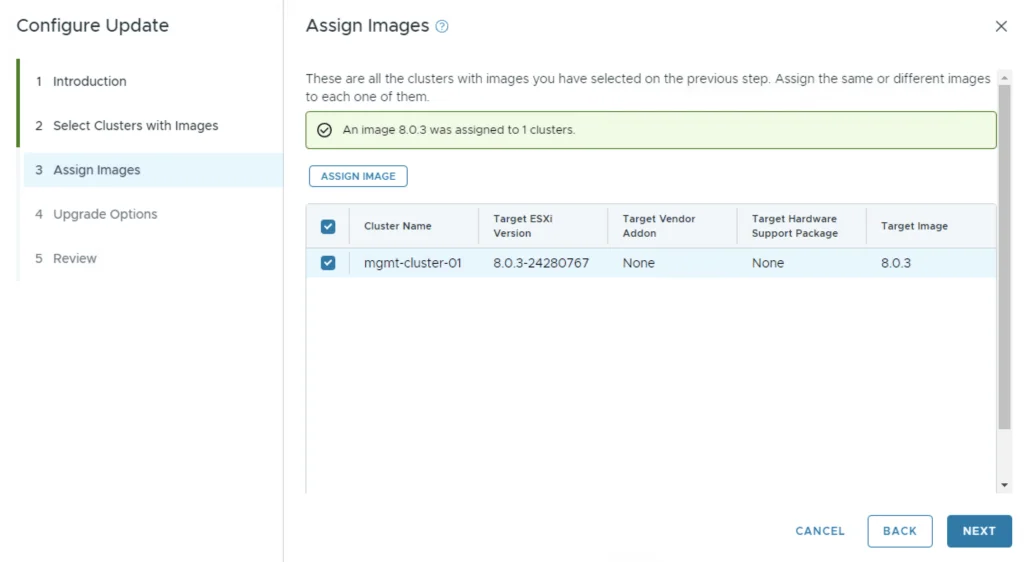

Assign an image and click next

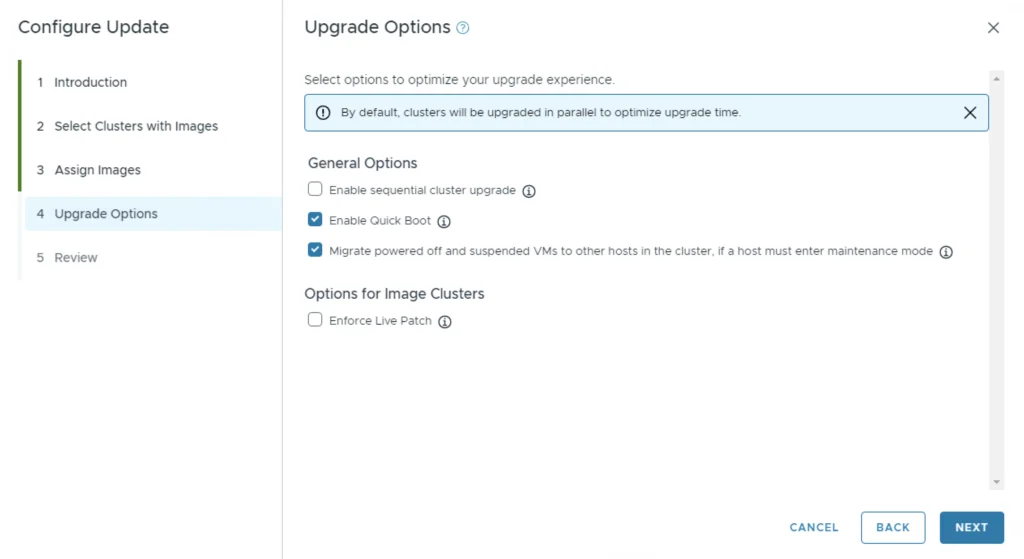

We can also enable sequential cluster upgrade, quick boot and the ability to evacuate offline VMs part of the maintenance. Click Next

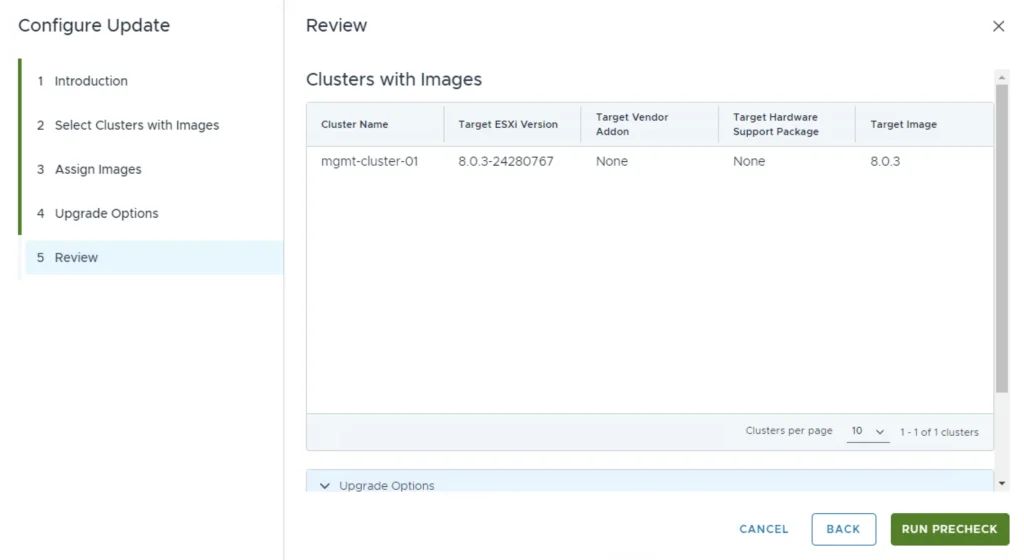

Review the updates and click Run precheck

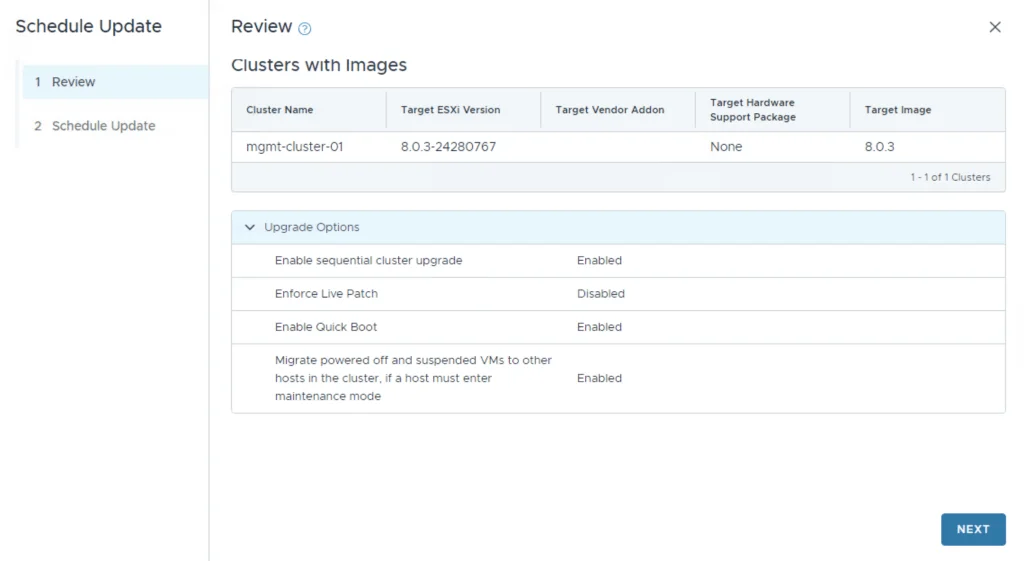

Once the precheck is completed we can click on schedule update. The first screen gives us a review. We ca continue by clicking Next.

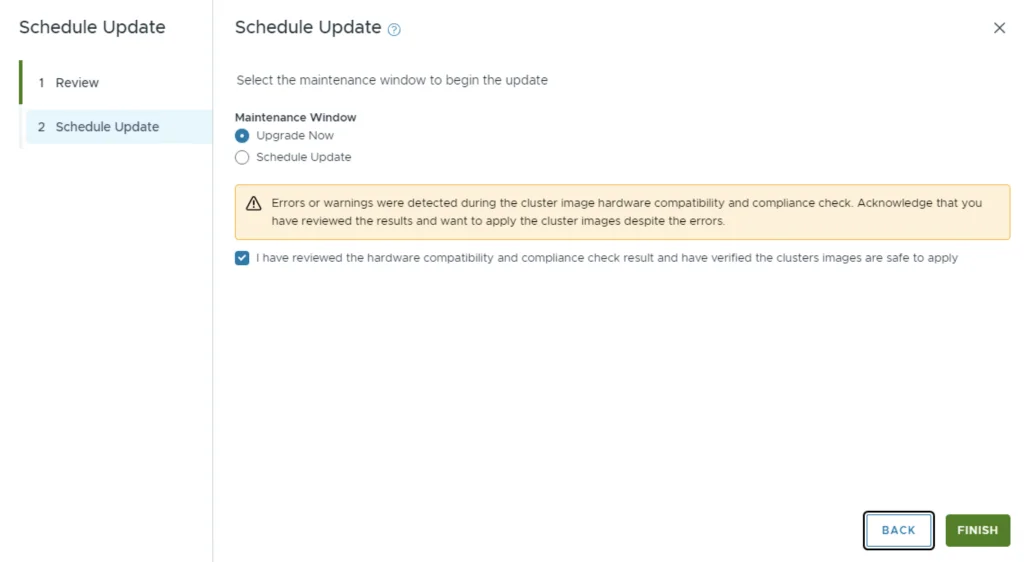

Make the proper selection and click Next

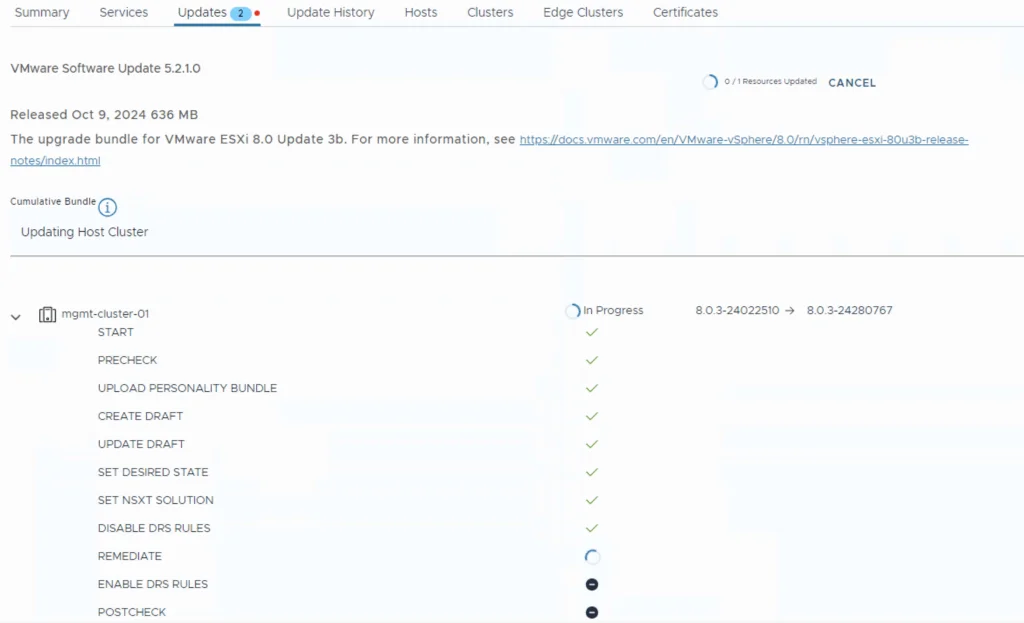

And with that we are finished with the workload domain. We can follow the same steps for the other domains

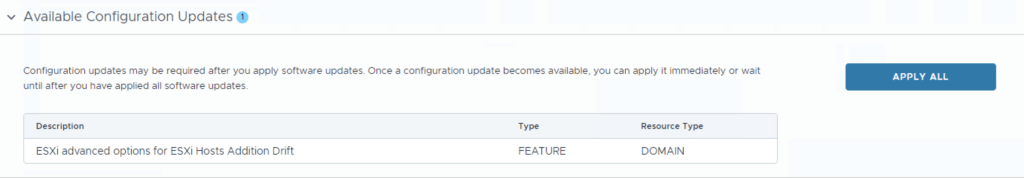

If applicable apply any configuration updates
Don’t forget to clean up the download bundles by following the steps from my other blog here
