With the release of of VCF 5.1.1 I wanted to get my lab upgraded. The release blog can be found here and the release notes are here
Please note that some of the components within the VCF will still need additional upgrading. Please read the release notes for additional details.
We can start by going to Inventory -> Workload Domains -> Select the domain -> Update/Patches -> Select the VCF version -> Download now. If you do not see the newest releases go to Administration -> Online Depot and add a VMware Customer Connect account that has access to perform downloads.
The next step is to upgrade VCF by going to Inventory -> Workload Domains -> Select the workload domain -> Update/Patches -> Select the cloud foundation version we’re upgrading to and click on Update Now for the VMware Cloud Foundation Update 5.1.1

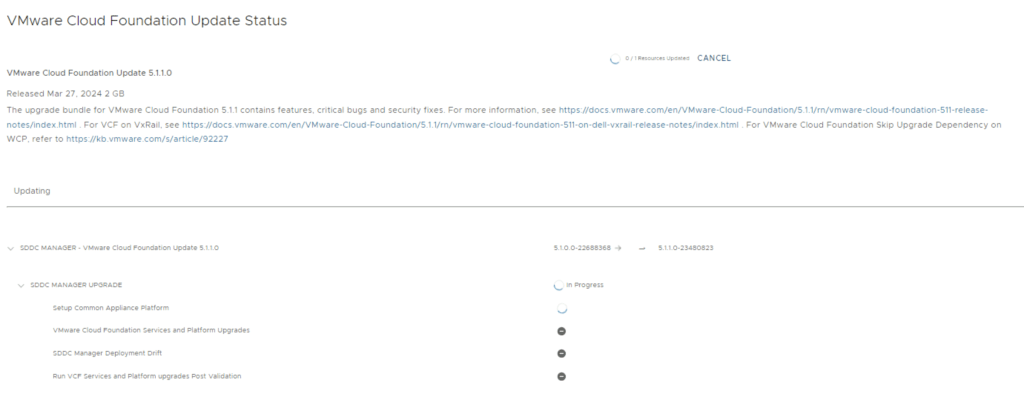

Next we are taken to the Upgrade page where we can follow the upgrade for each one of the components

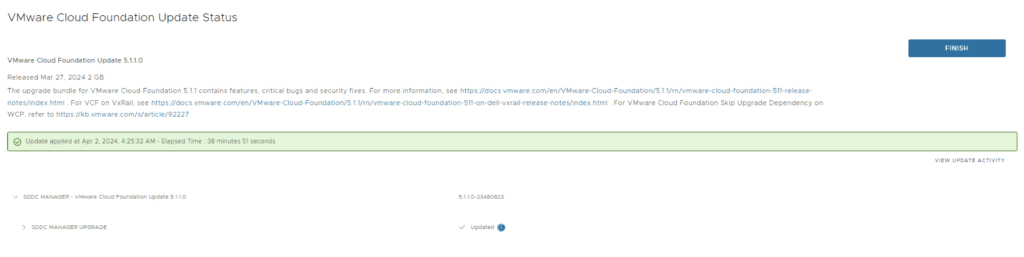

Once the upgrade is complete we can click Finish to be returned back to the main screen
Because we are changing the SDDC-Manager versions i would strongly recommend to clear cache and log back in before going forward.
Next step is to upgrade NSX-T installation to NSX-T 4.1.2.3. The release notes can be found here.

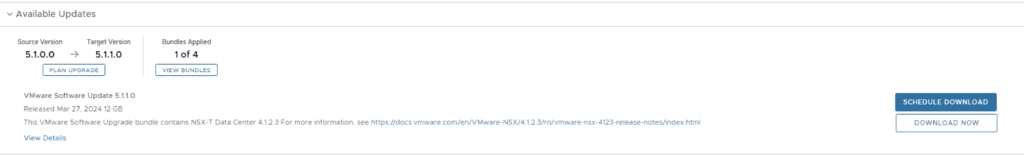

We can also download it directly from the workload domain by going to Inventory -> Workload Domains -> Select the domain -> Update/Patches -> Download now

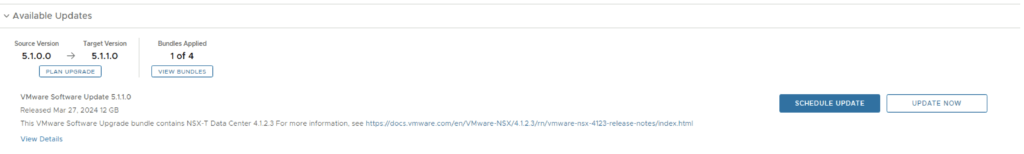

Once the download is complete we can proceed with updating the NSX components by clicking on the update now

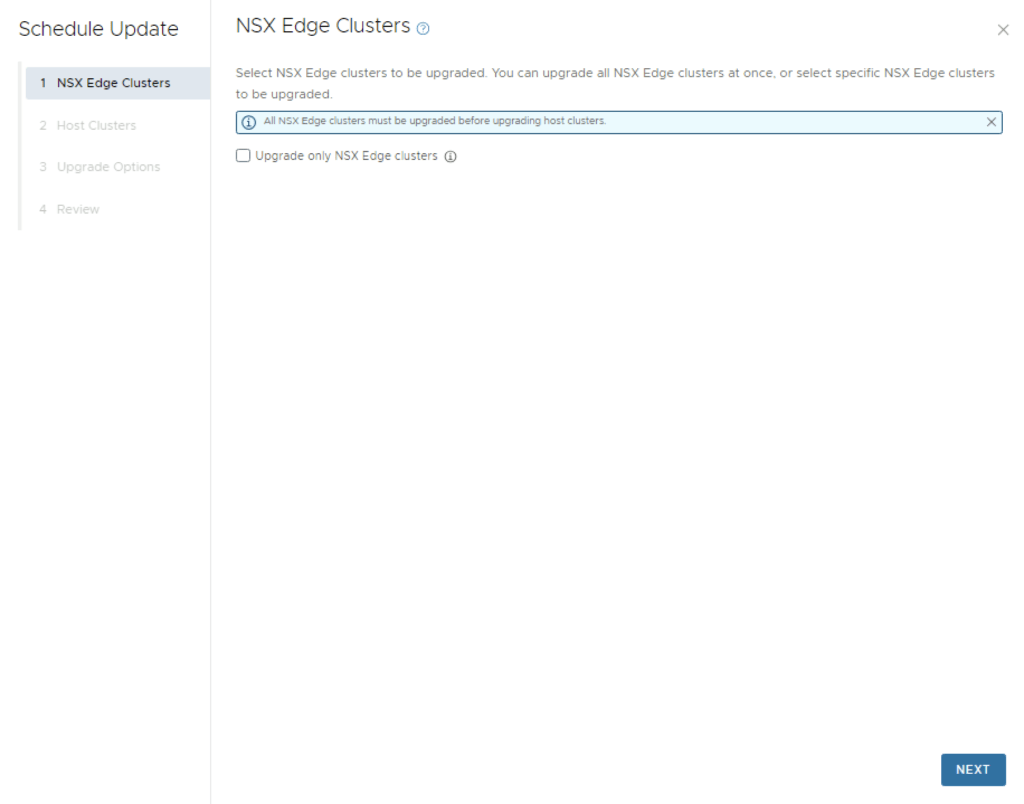

Make the proper selection and click next
Make the proper selection and click next

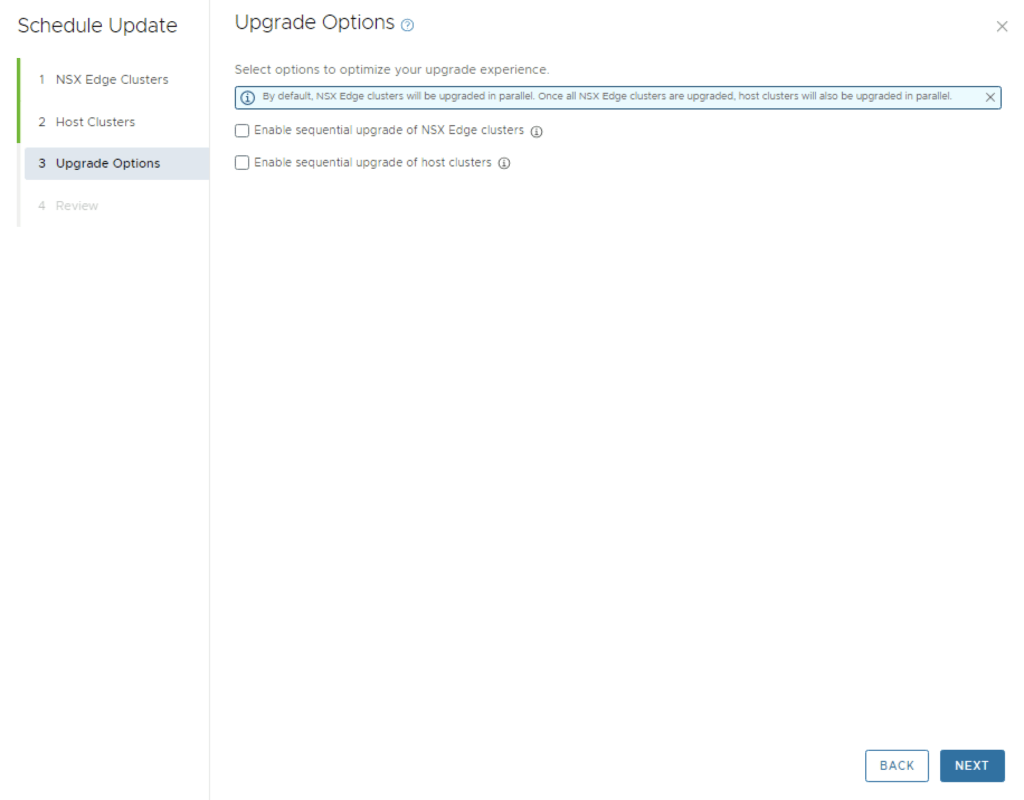

Make the proper selection and click next

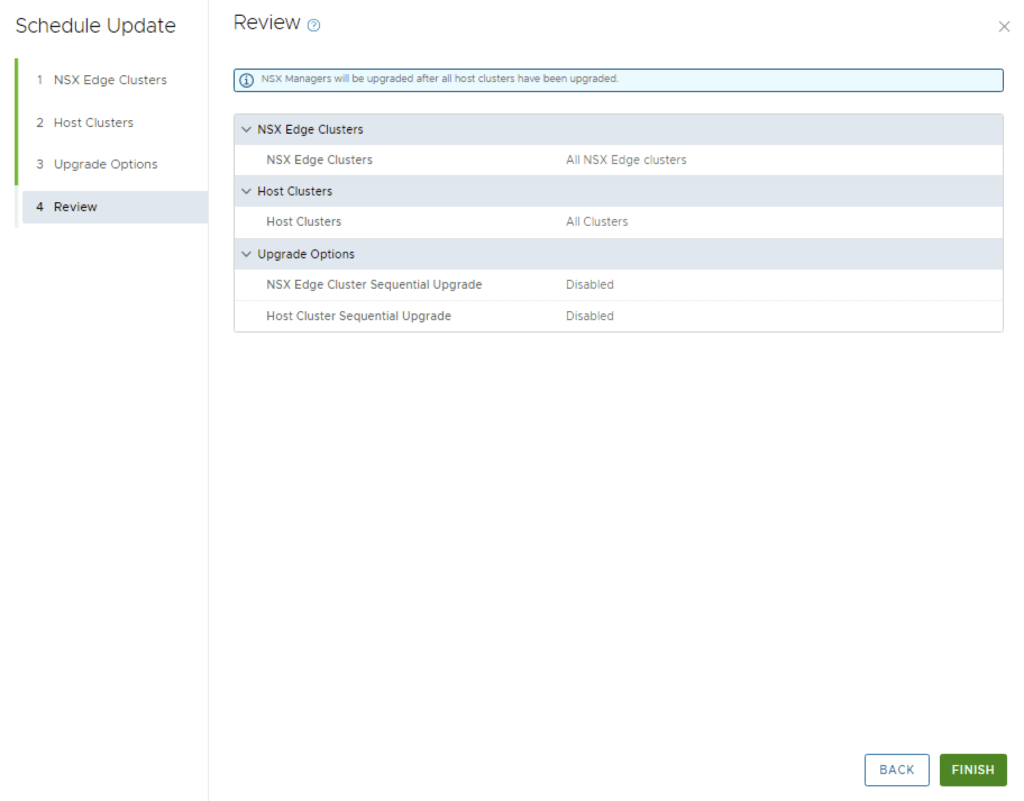

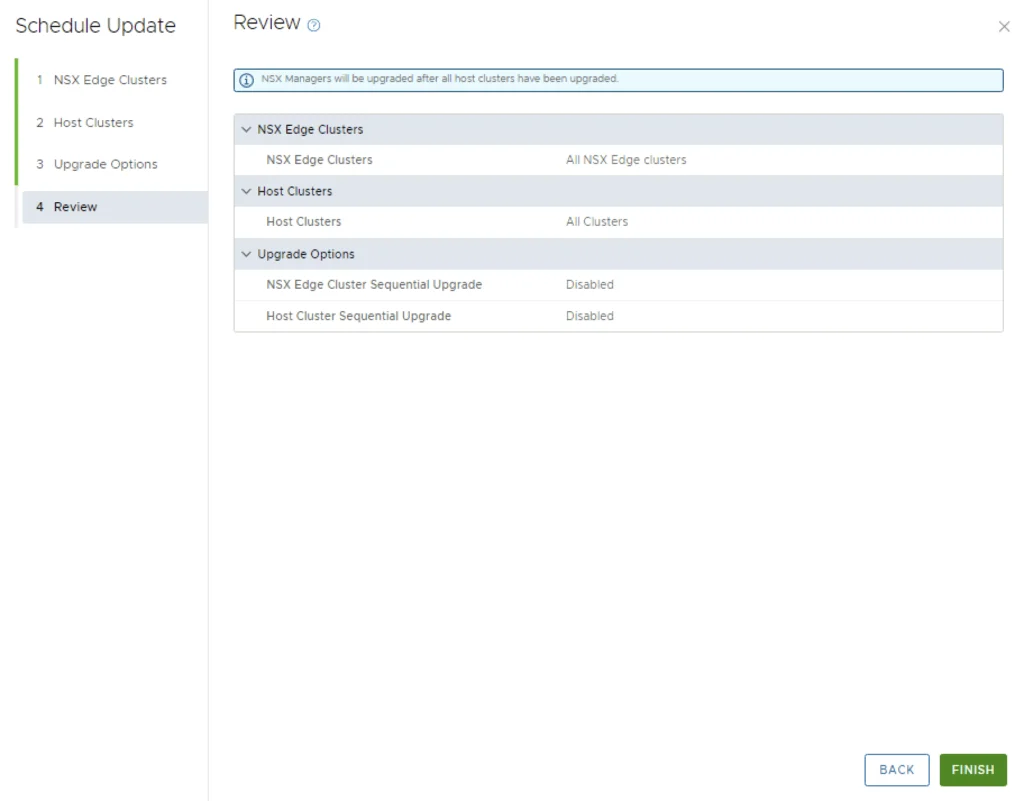

Review the options and click on Finish
The upgrade will go thought upgrading the NSX edges. We can view the upgrade status by clicking on view status

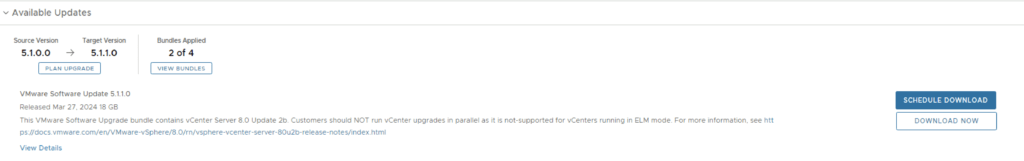

Once the upgrade is complete we can proceed with the vCenter Upgrade. VCF 5.1.1 comes with vCenter Server 8.0 Updated 2b. The release notes can be found here. We can go to Inventory -> Workload Domains -> Select the workload domain -> Update/Patches -> Under Available updates click on Download now.

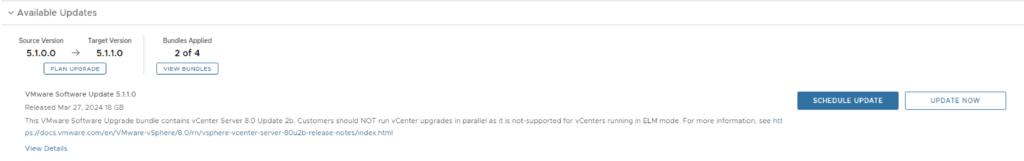

Once the download is complete we can click on Update now

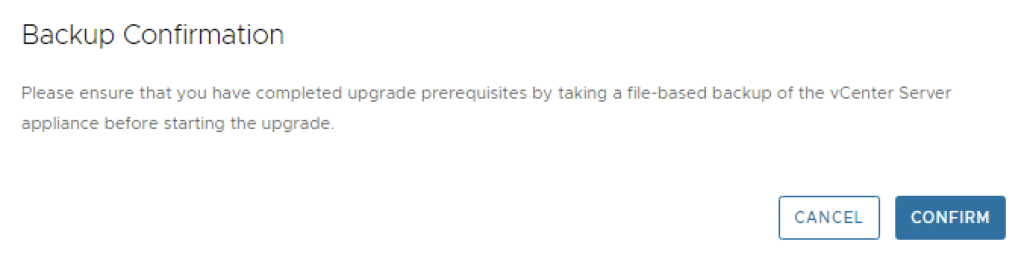

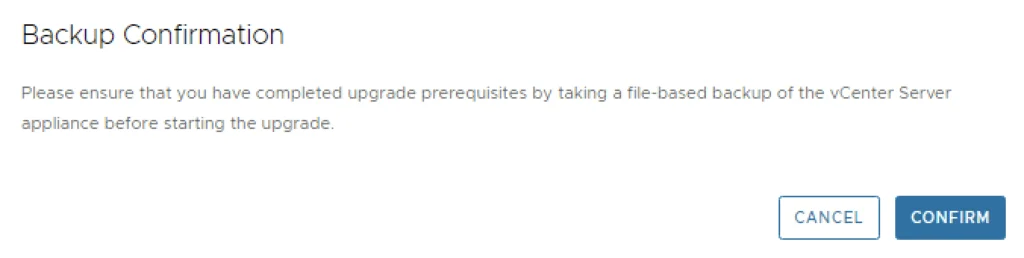

Confirm that we have a backup

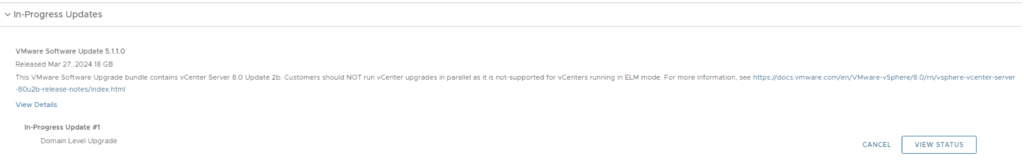

We can follow the status of the upgrade by clicking on the view status tab

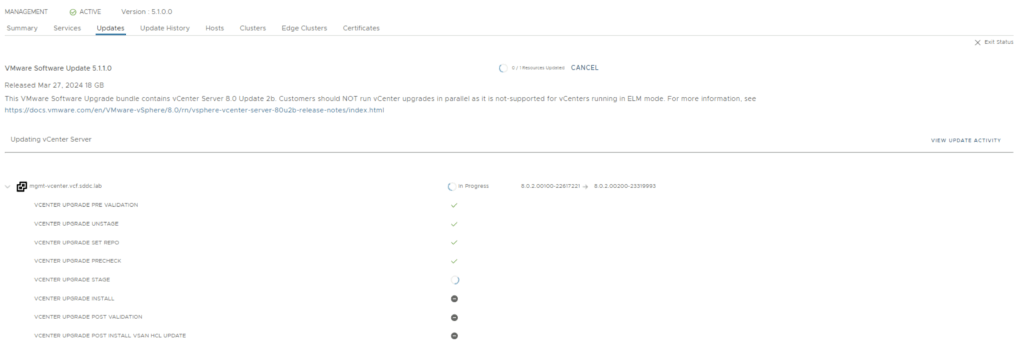

Here we can see the different components that are getting upgraded

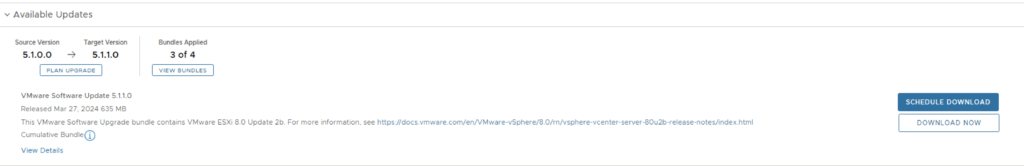

Once the upgrade is complete we are taken back to the previous page where we can see that the ESXi servers are next. The release notes can be found here. Click on Download Now.
Once the download is complete we can click on Update now
If we have multiple clusters we can enable Cluster-level selection and select the specific cluster(s) we want to upgrade.

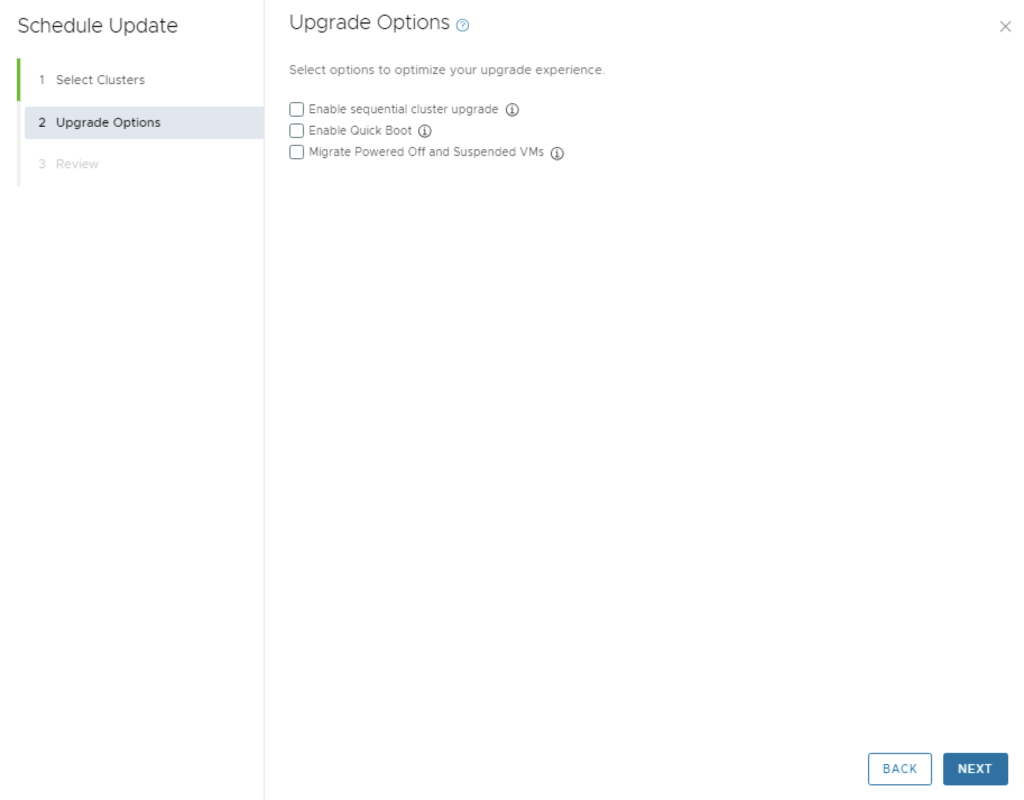

We can also enable sequential cluster upgrade, quick boot and the ability to evacuate offline VMs part of the maintenance. Click Next

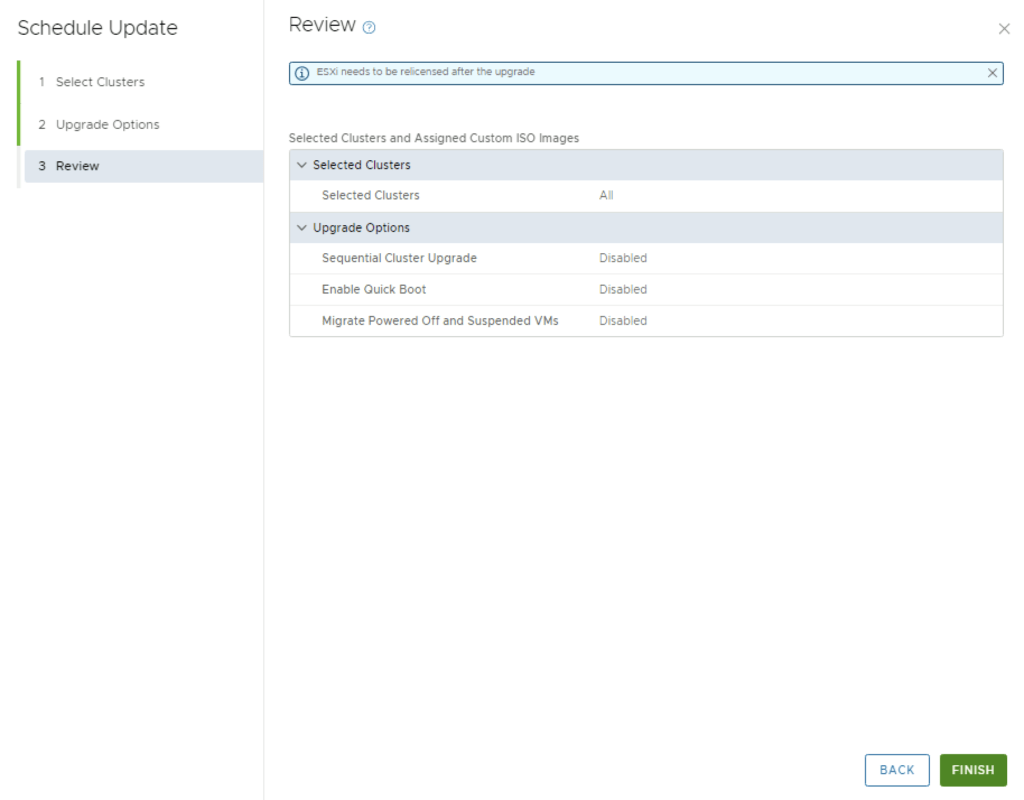

We get to review the options once again before we click finish to to submit the task

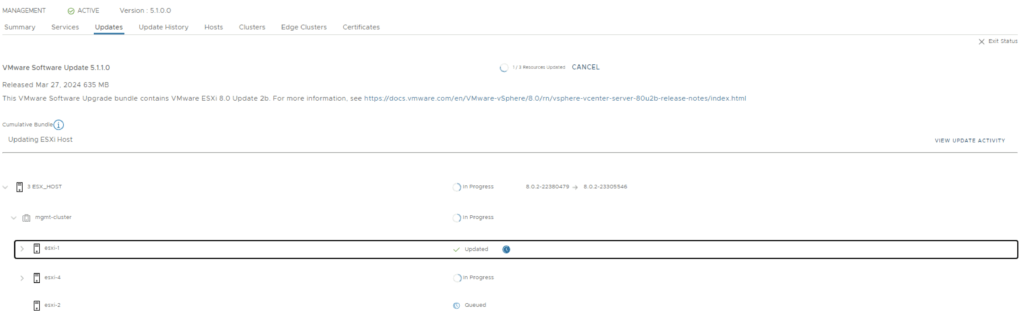

Once submitted we can view the status by clicking on View Status
And with that we are finished with the workload domain. We can follow the same steps for the other domains
Don’t forget to clean up the download bundles by following the steps from my other blog here
