In this post i will go over upgrading my 8.x Aria Operations appliance to 8.17.1 using Aria Suite Lifecycle. As a pre requirement we do need to have Aria Suite Lifecycle upgraded to 8.16. Instructions can be found here. The upgrade does not include the latest Product Support Pack. We can apply the latest Product Support Pack following the instructions here.
To get started we can go to Aria Suite Lifecycle -> Lifecycle Operations -> Settings -> Binary Mapping. (If you haven’t added your My VMware credentials you will need to do that first by going to Aria Suite Lifecycle -> Lifecycle Operations -> Settings -> My VMware)
Click on Add Binaries under Product Binaries
Select My VMware and click on Discover
We can see a list of binaries that have been discovered. Make sure we select the upgrade package not the install package. We can select what we need and click on Add
This will create a request and start downloading the package. To view the progress we can click on the Click Here hyperlink
Click on the in Progress button to view the details
We now have to wait for the download to complete
After the download is complete we can go to Environments -> View Details on the environment that includes Aria Operations
Click on Upgrade
An Inventory sync is recommended if the environment has changed since LCM performed the last sync. We trigger the sync from the UI or click on Proceed to continue

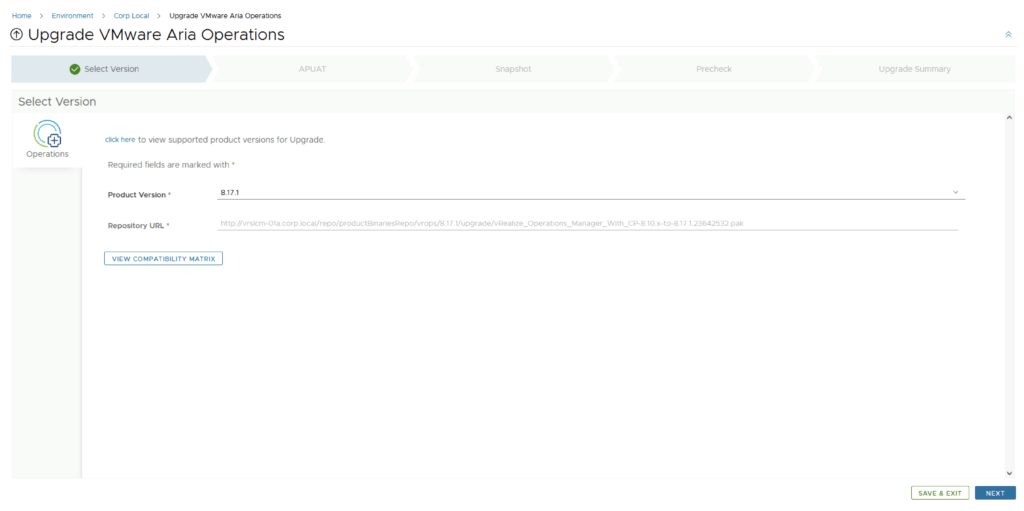

Select product Version 8.17.1 and click Next. We can also review the compatibility matrix to make sure the environment is compatible.
Run the Assessment tool to make sure the currently used dashboards, reports, metrics etc are still compatible with the new version
Once the report has finished running we can either Download or view the report. Once everything has been reviewed, we can click on the I have viewed the report and agree to proceed box and click next to proceed to the next step.
A new feature that was added was the capability to automatically create a snapshot prior to the upgrade and remove it after the upgrade. On this screen we also have the ability to chose if we want to keep the snapshots post upgrade for validation testing for example. Click next
Run the Precheck to make sure there are no errors or issues.
Once the check is complete we can review the checks that were performed and we can continue by clicking Next.

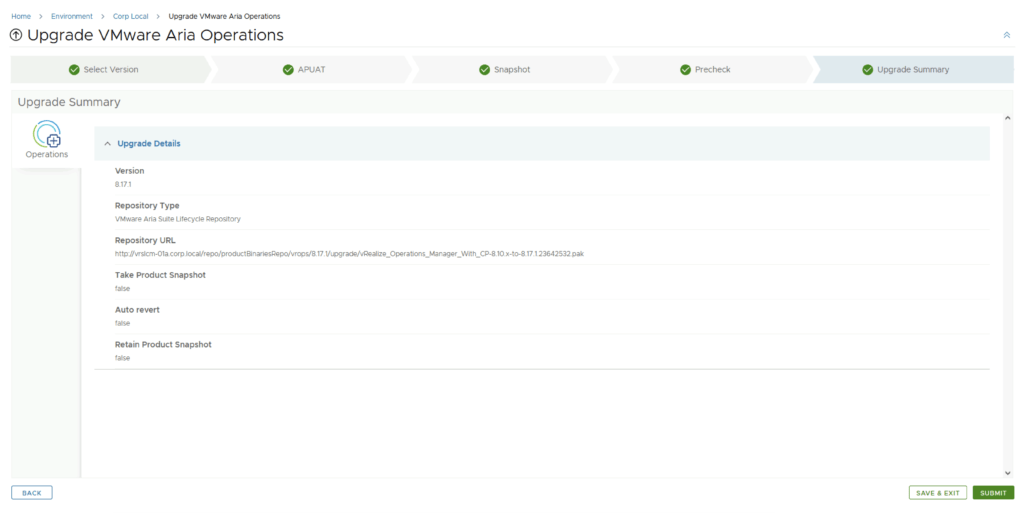

Review the upgrade details and click on Next and the Submit. We are taken to the progress screen where we can follow the progress.
The system will get rebooted and once its back up, we will be on 8.17.1
Since we are doing a major upgrade i strongly recommend to clean the cache before using the new Aria Operations version.
