With the release of of VCF 4.4 i wanted to get my lab upgraded. The release blog can be found here and the release notes are here
In order to get to 4.3.1.0 in the past we had to upgrade to each version incrementally. As per the documentation found here we can now upgrade from any release past 4.1.0.1 directly to 4.4 skipping the releases in between. We can do so by going to Repository -> Bundle management -> Download now.

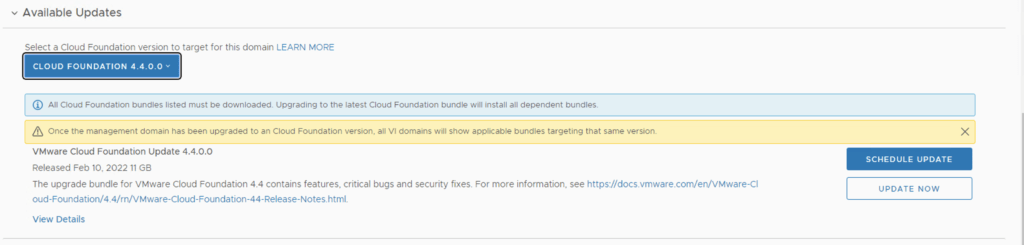

The next step is to upgrade VCF by going to Inventory -> Workload Domains -> Select the workload domain -> Update/Patches -> Select the cloud foundation version were upgrading to and click on Update Now for the VMware Cloud Foundation Update 4.4.0.0

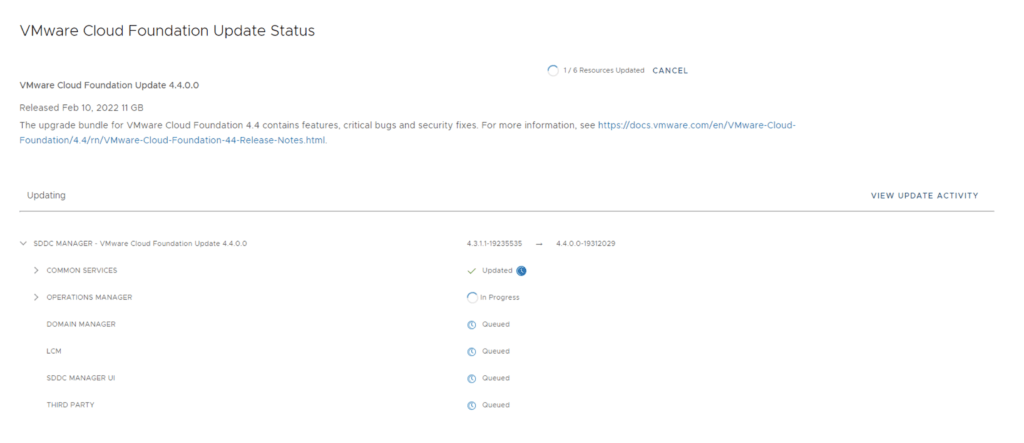

Next we are taken to the Upgrade page where we can follow the upgrade for each one of the components
Once the upgrade is complete we can click Finish to be returned back to the main screen
Because we are changing the SDDC-Manager versions i would strongly recommend to clear cache and log back in before going forward.

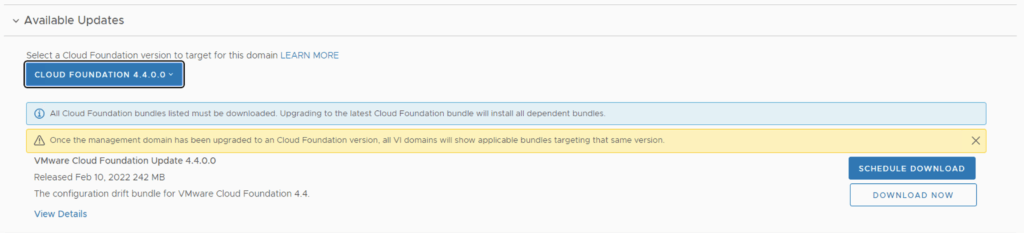

Next step is to download and install the configuration drift package. We can find it under Lifecycle management -> Bundle management or Inventory -> Workload Domains -> Select workload domain -> Update/Patches -> Under the drop down select Cloud Foundation 4.4.0.0 -> Download Now

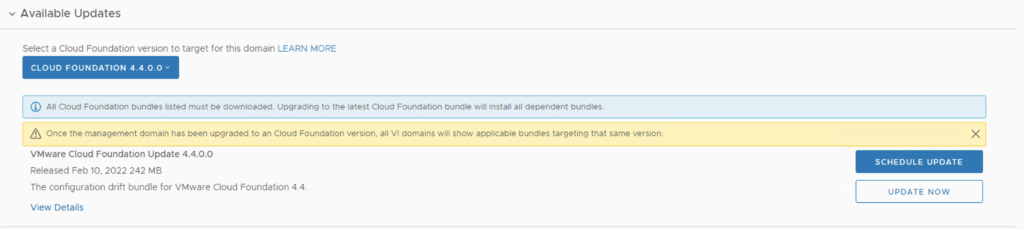

Once the download is complete in the same location click on update now

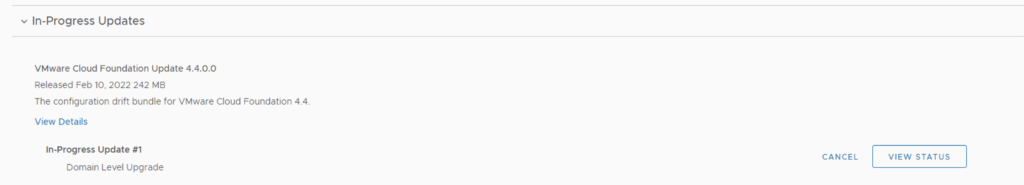

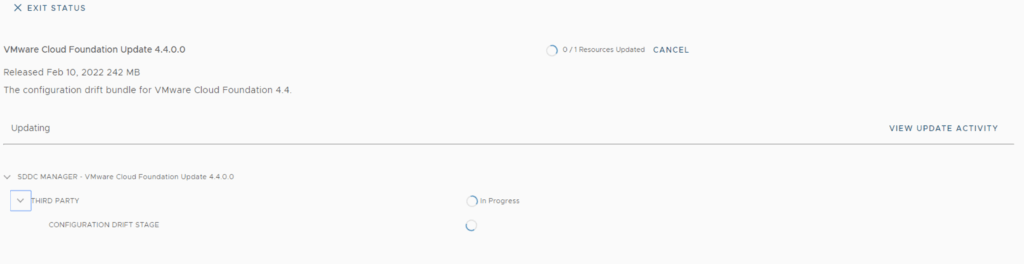

We can view the upgrade process by clicking on view status

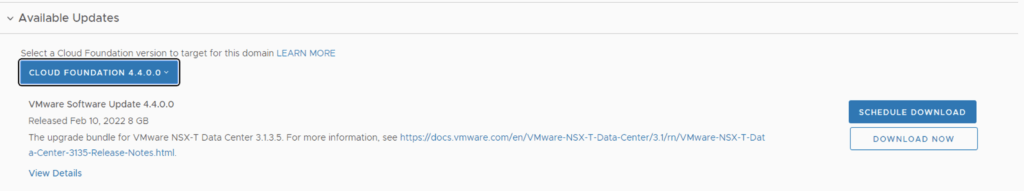

Next step is to upgrade NSX-T installation to NSX-T 3.1.3.5. The release notes can be found here. We can go to inventory -> Workload Domains -> Select the workload domain -> Update/Patches -> Under Available updates click on the drop down and select Cloud Foundation 4.4.0.0 -> Download now.

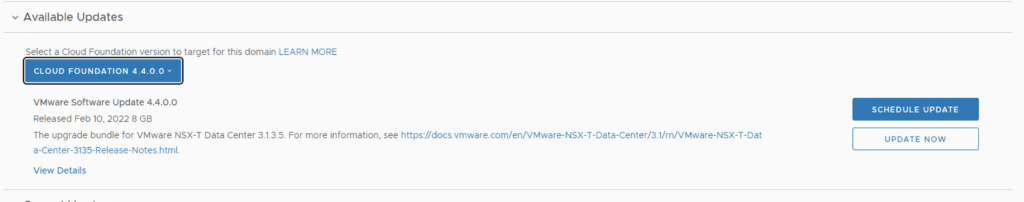

Once the download is complete we can proceed with updating the NSX component by clicking on the update now

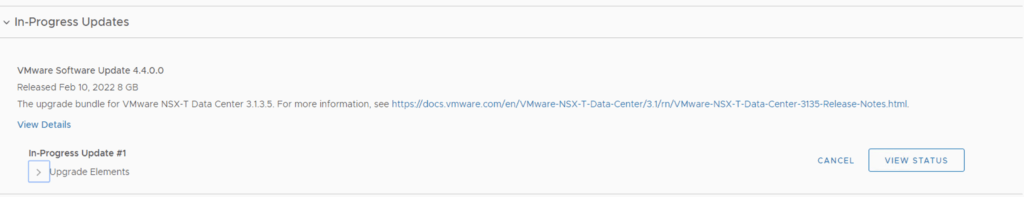

The upgrade will go thought upgrading the NSX managers as well as the edges. We can view the upgrade status by clicking on view status

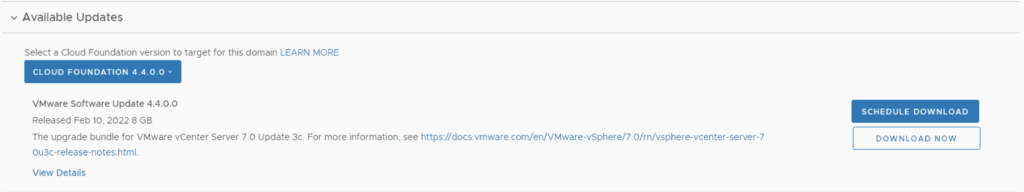

Once the upgrade is complete we can proceed with the vCenter Upgrade. VCF 4.4 comes with vCenter Server 7.0 Updated 3c. The release notes can be found here. We can go to inventory -> Workload Domains -> Select the workload domain -> Update/Patches -> Under Available updates click on the drop down and select Cloud Foundation 4.4 -> Download now.

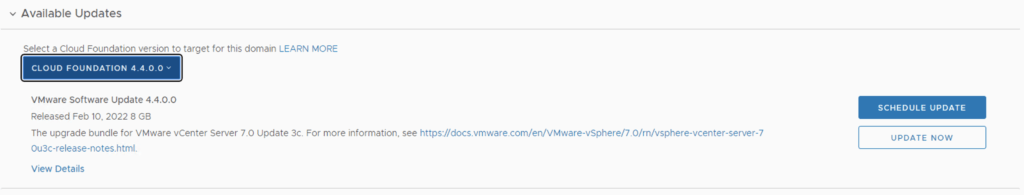

Once the download is complete we can click on Update now

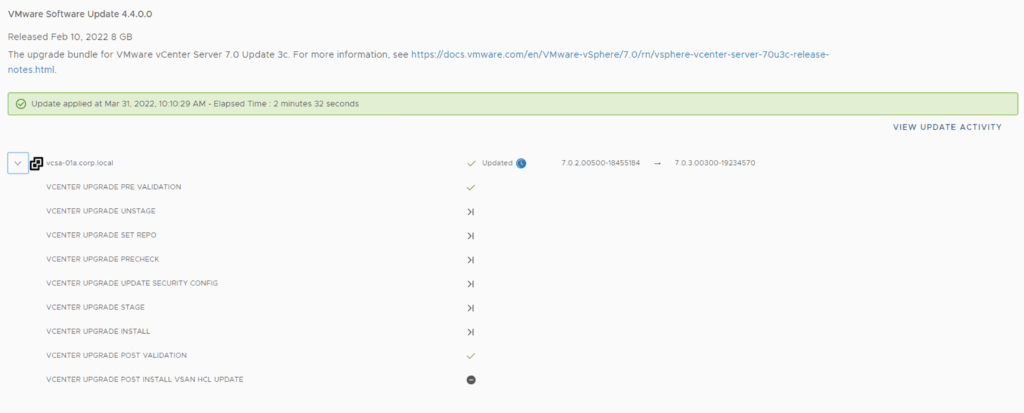

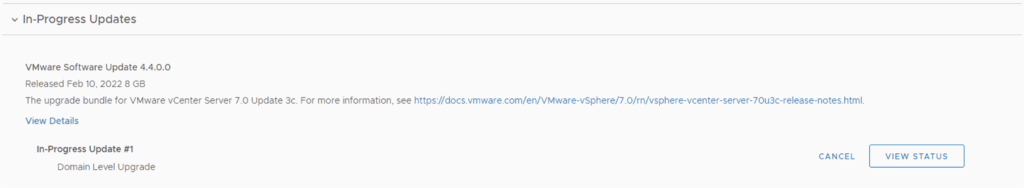

We can follow the status of the upgrade by clicking on the view status tab
Here we can see the different components that are getting upgraded

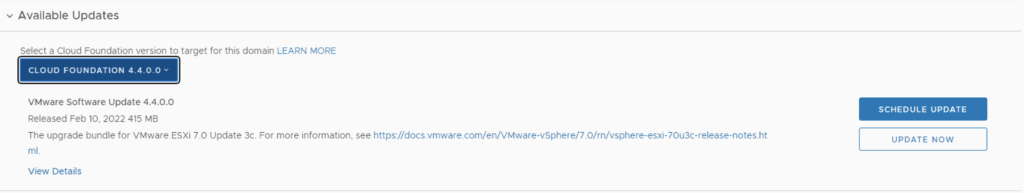

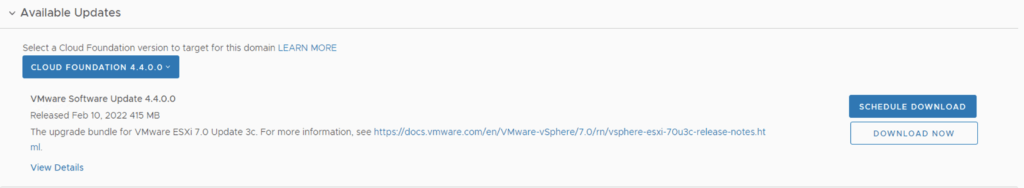

Once the upgrade is complete we are taken back to the previous page where we can see that the ESXi servers are next. The release notes can be found here. Click on Download Now
Once the download is complete we can click on Update now
If we have multiple clusters we can enable Cluster-level selection and select the specific cluster(s) we want to upgrade.
We can also enable sequential cluster upgrade as well as quick boot
We get to review the options once again before we click finish to to submit the task

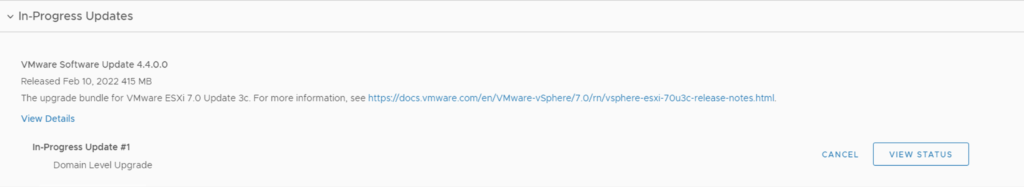

Once submitted we can view the status by clicking on View Status
And with that we are finished with the workload domain. We can follow the same steps for the other domains
