I replaced the expired MP Corfu certificate in NSX by generating a self-signed certificate in the UI and sending the replacement through the API.

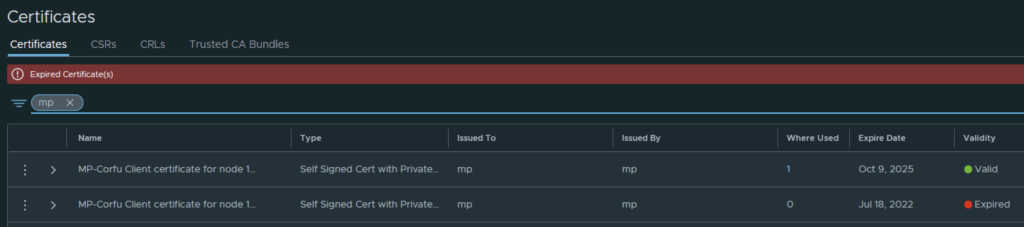

In my case the MP Corfu certificate has already expired
Generating a New Self-Signed Certificate

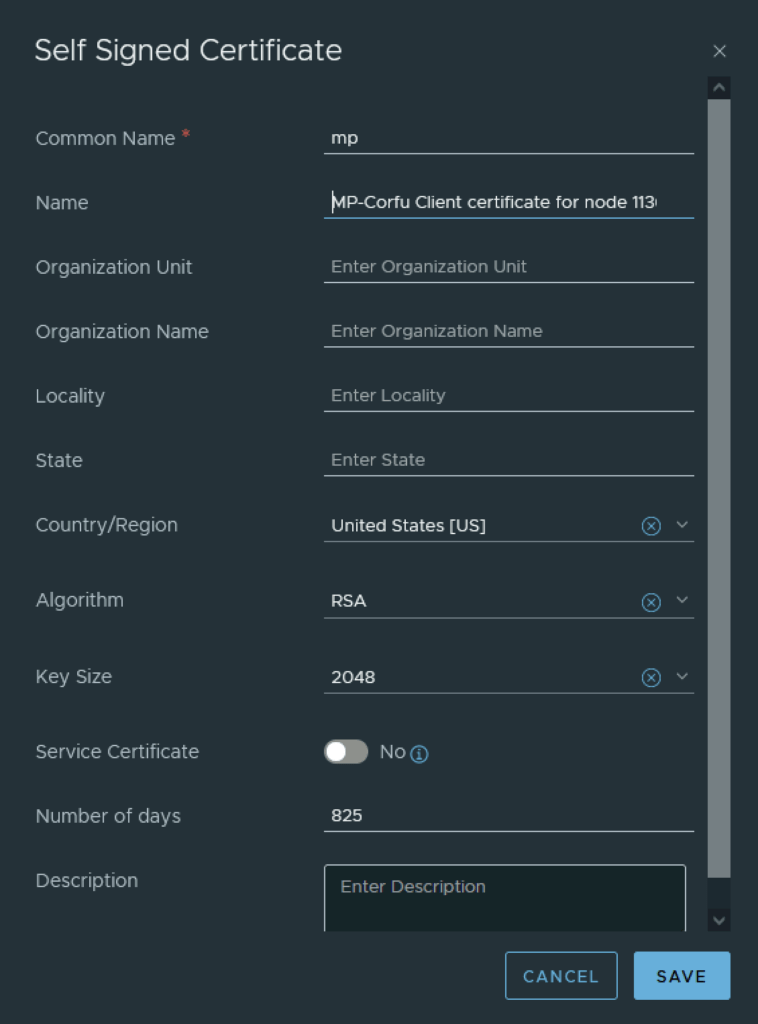

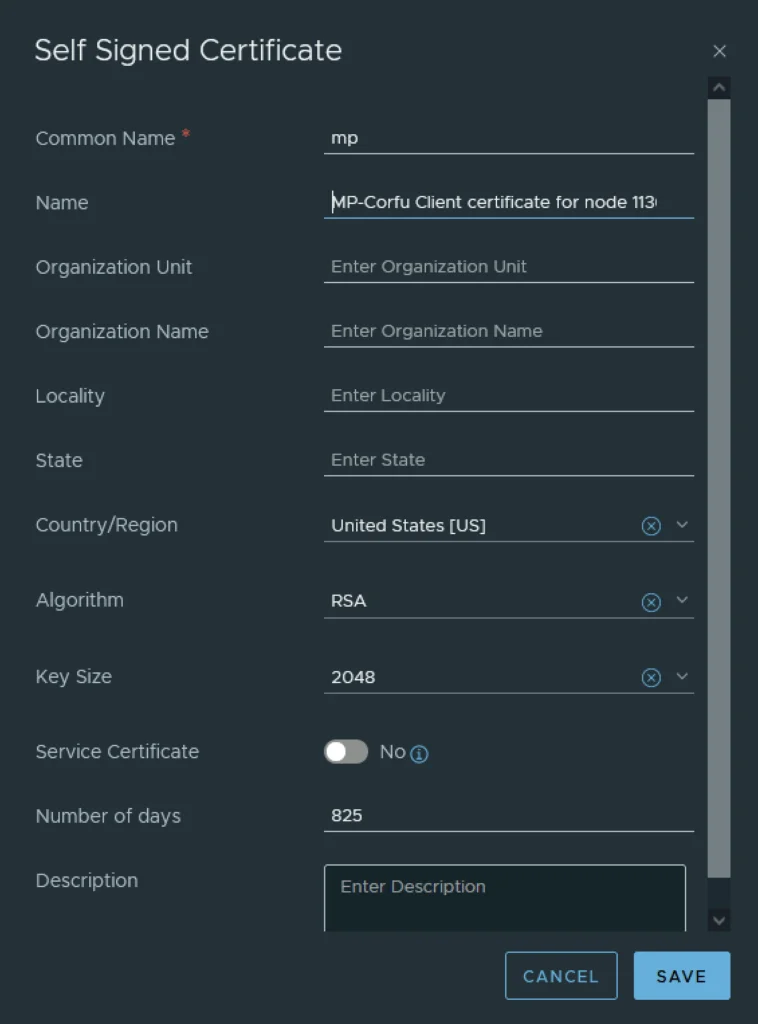

In the top menu bar I went to Generate -> Generate Self Signed Certificate

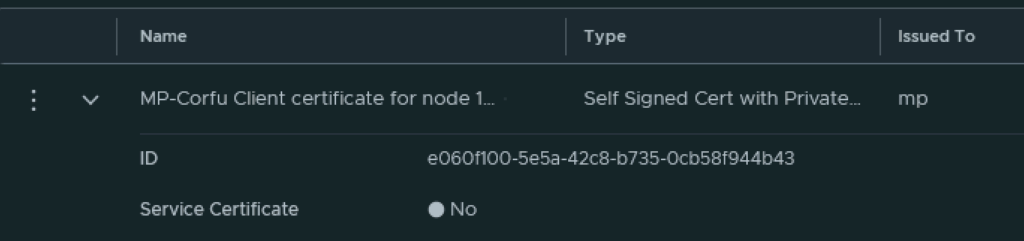

Next I had to grab the new certificate ID
Building the Trust-Management API Call
The next step is to replace the old certificate with the new certificate via an API call. For this I used Postman but any other tool could potentially be used.
The URL for the post call would go against https://nsx-vip-01a.corp.local/api/v1/trust-management/certificates/cert_id?action=apply_certificate&service_type=CBM_MP&node_id=node_id
The node ID can be found under Appliances -> View details on node, the value to the right for UUID ex
For authentication I used basic, per best practices we should be using a token.
For headers had to add Content-Type application\json ex

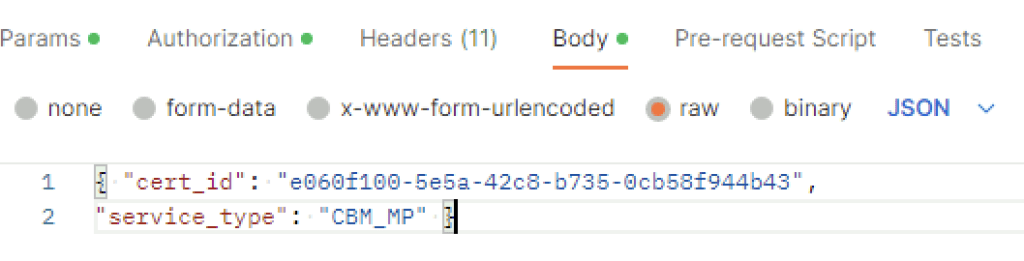

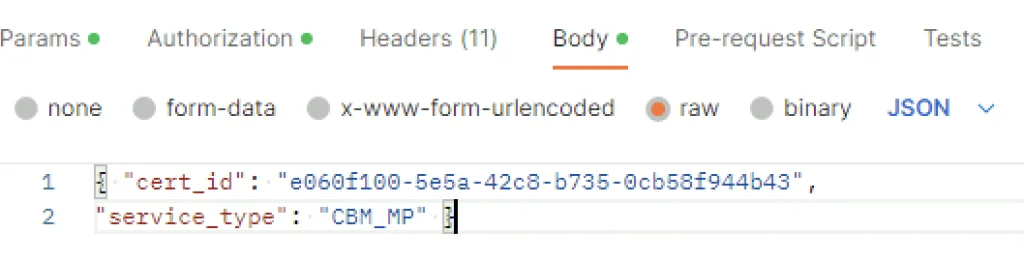

In the body I picked raw and added the following in
{ "cert_id": "e060f100-5e5a-42c8-b735-0cb58f944b43",
"service_type": "CBM_MP" }
The cert ID is from the certificate I generated earlier. ex
Verifying the Certificate Replacement
Once I clicked send I was presented back with a 200 OK
Going in the web browser I can also see that the new certificate is now used and the old one doesn’t have anything assigned to it ex
Removing the Old Certificate

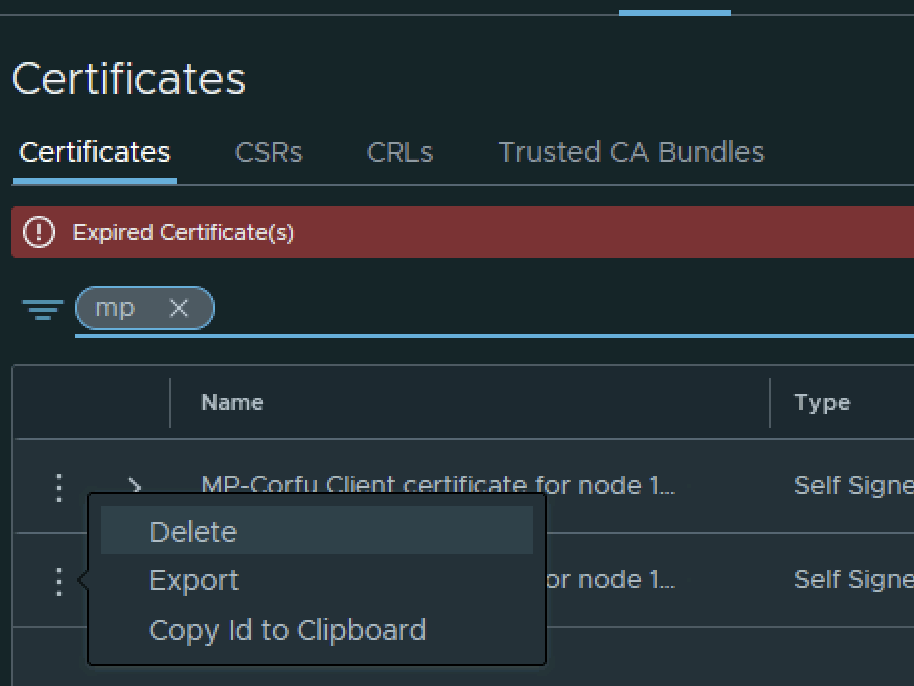

The final step I did was removing the old certificate by clicking on the 3 dots to left and picking delete from the menu
If you also need to renew the Corfu API certificate, the process is very similar and I covered it in a separate guide.
