In this blog we will go over replacing the cluster manager Corfu certificate in NSX. In this example I will be using the UI to generate the self signed certificate and then an API call to replace the certificate.

In my case the cluster manager Corfu certificate has already expired

Expired certificate details for NSX cluster manager Corfu client.

Generating a Self Signed Certificate

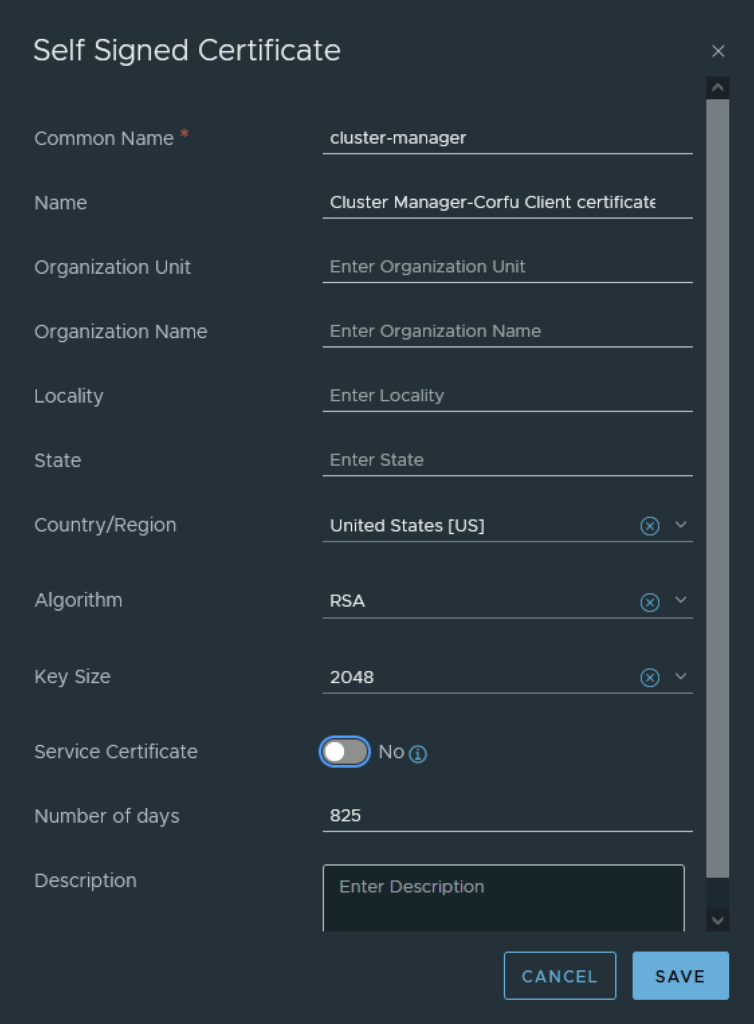

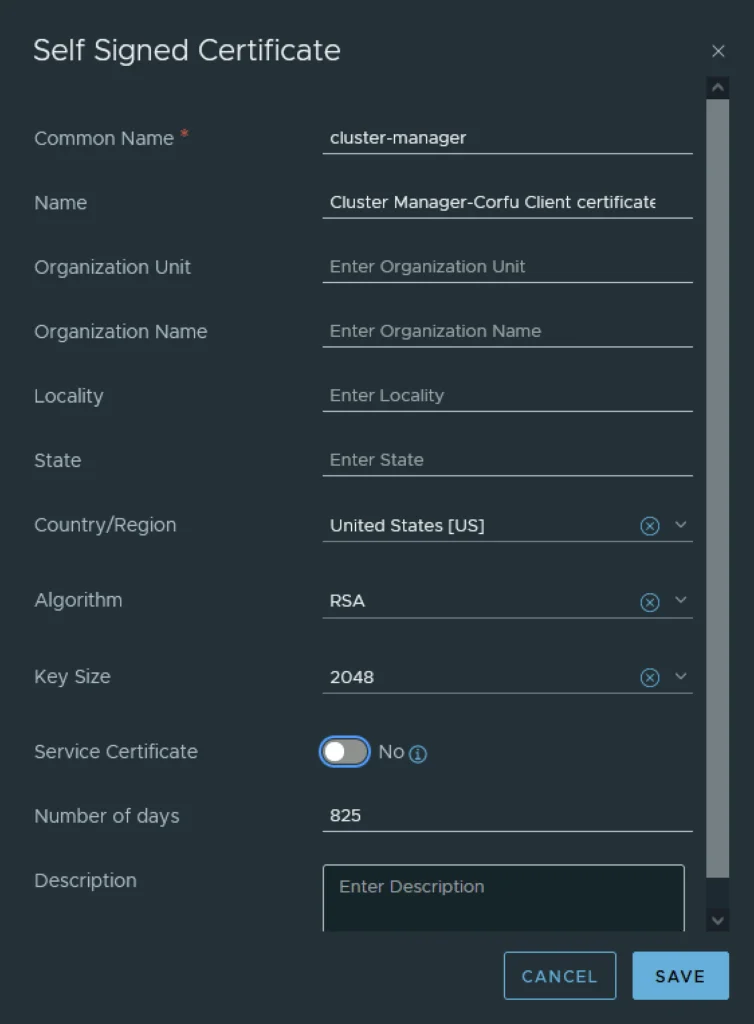

In the top menu bar I went to Generate -> Generate Self Signed Certificate

Fields for creating a self-signed certificate, including Common Name, Algorithm, Key Size, and Number of days.

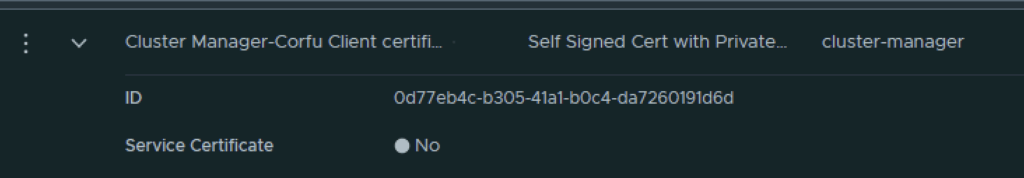

Next I had to grab the new certificate ID

UI element with a certificate ID and a “Service Certificate” option.

Replacing the Certificate via the API

The next step is to replace the old certificate with the new certificate via an API call. For this I used Postman but any other tool could potentially be used.

The URL for the post call would go against https://nsx-vip-01a.corp.local/api/v1/trust-management/certificates/cert_id?action=apply_certificate&service_type=CBM_CLUSTER_MANAGER&node_id=node_id

The node ID can be found under Appliances -> View details on node, the value to the right for UUID ex

Appliance details: Version 4.1.0.2, Deployment Type Manual, Transport Nodes 4, UUID and Cert Thumbprint fields.

For authentication I used basic, per best practices we should be using a token.

For headers had to add Content-Type application\json ex

Headers tab in a tool, listing Content-Type as application/json.

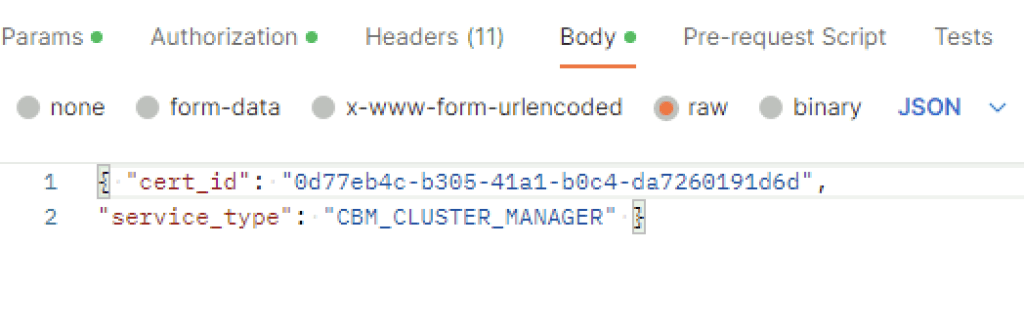

In the body I picked raw and added the following in

{ "cert_id": "0d77eb4c-b305-41a1-b0c4-da7260191d6d",
"service_type": "CBM_CLUSTER_MANAGER" }

The cert ID is from the certificate I generated earlier. ex

JSON body with fields for cert ID and service type in a request setup.

Once I clicked send I was presented back with a 200 OK

API response showing 200 OK status, 527 bytes, and 2.44 seconds latency.

Verifying the New Certificate

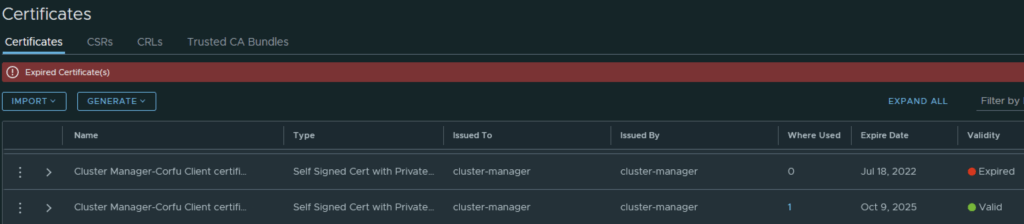

Going in the web browser I can also see that the new certificate is now used and the old one doesn’t have anything assigned to it ex

Certificates, one expired, one valid, for cluster manager Corfu.

Removing the Old Certificate

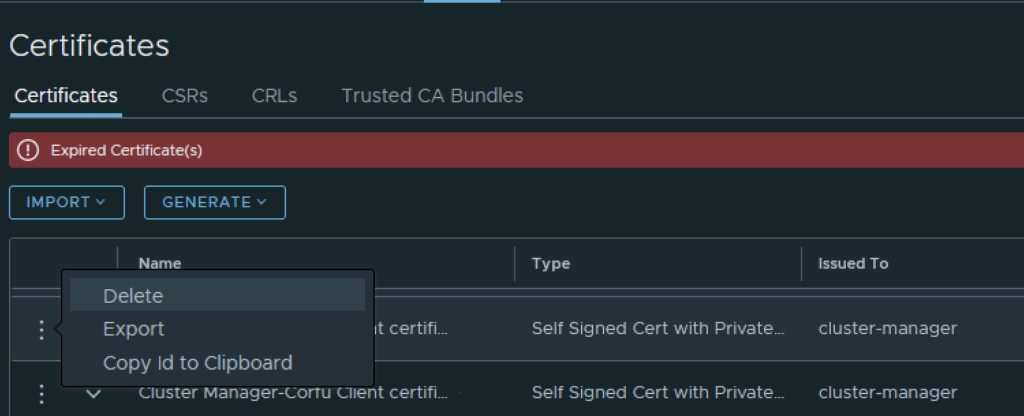

The final step I did was removing the old certificate by clicking on the 3 dots to left and picking delete from the menu

Certificate management with options to delete, export, or copy ID.

I have similar walkthroughs for the MP Corfu certificate and the CCP Corfu certificate in NSX.
