I replaced the expired AR Corfu certificate in NSX by generating a self-signed certificate in the UI and sending the replacement through the API.

Identifying the Expired AR Corfu Certificate

In my case the AR Corfu certificate has already expired

Expired certificate alert in NSX UI, showing AR Corfu client certificate details.

Generating a Self-Signed Certificate in the NSX UI

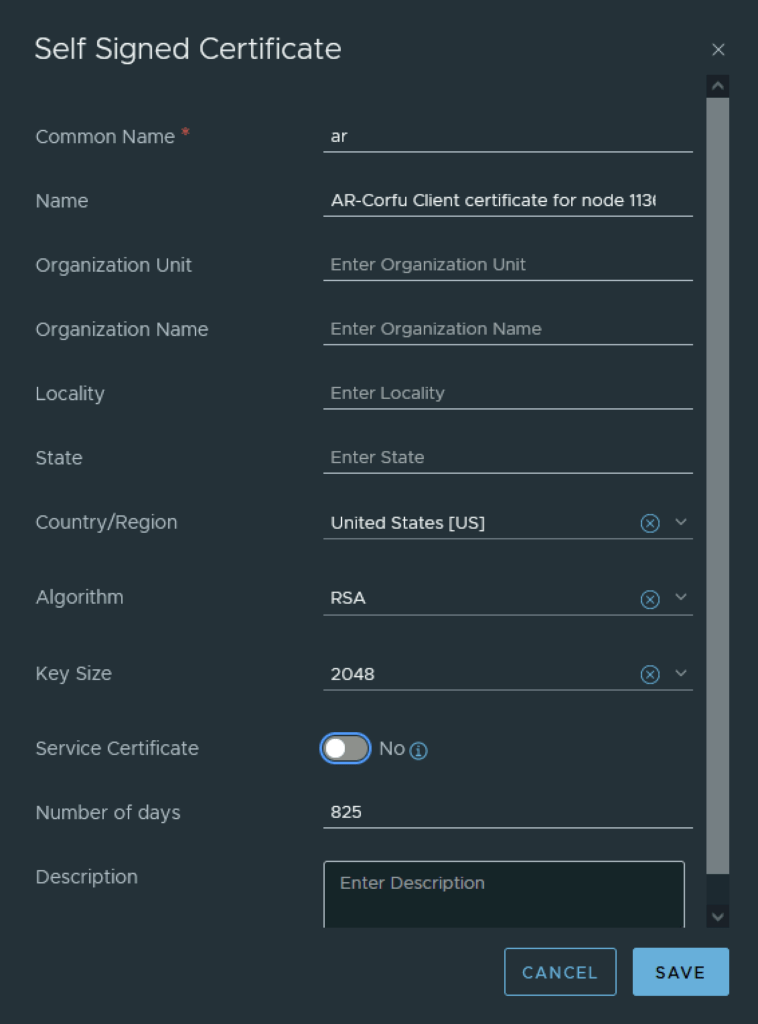

In the top menu bar I went to Generate -> Generate Self Signed Certificate

Fields for creating a self-signed certificate, including Common Name, Organization Unit, and Algorithm options.

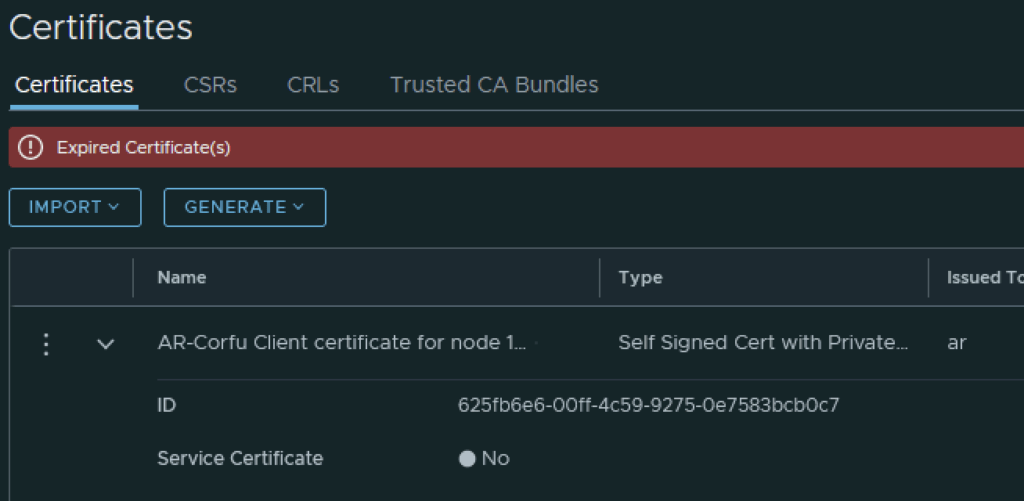

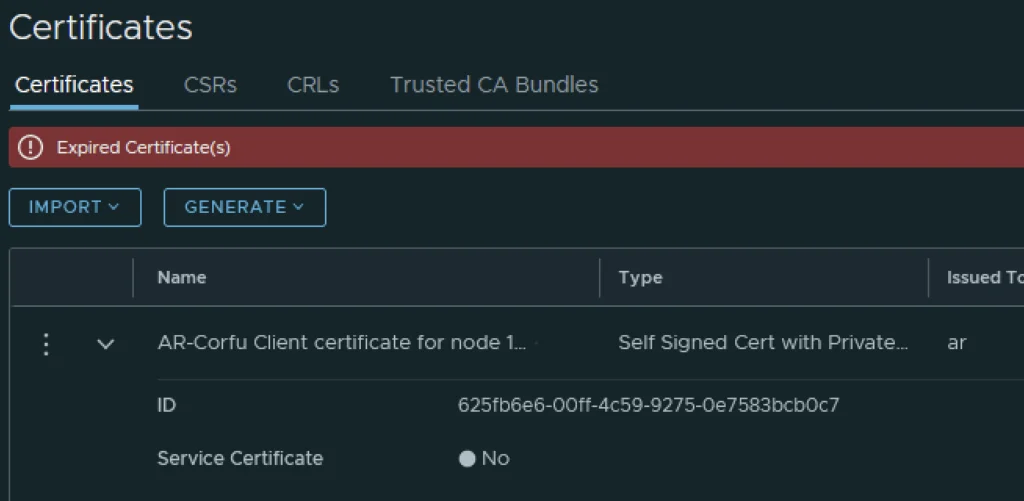

Next I had to grab the new certificate ID

Expired certificate warning shown, new certificate ID needed for NSX.

Applying the Certificate via the Trust-Management API

The next step is to replace the old certificate with the new certificate via an API call. For this I used Postman but any other tool could potentially be used.

The URL for the post call would go against https://nsx-vip-01a.corp.local/api/v1/trust-management/certificates/cert_id?action=apply_certificate&service_type=CBM_AR&node_id=node_id

The node ID can be found under Appliances -> View details on node, the value to the right for UUID ex

Appliance details show version, deployment type, transport nodes, UUID, and cert thumbprint.

For authentication I used basic, per best practices we should be using a token.

For headers had to add Content-Type application\json ex

In a Postman request, the Headers tab shows Content-Type set to application/json.

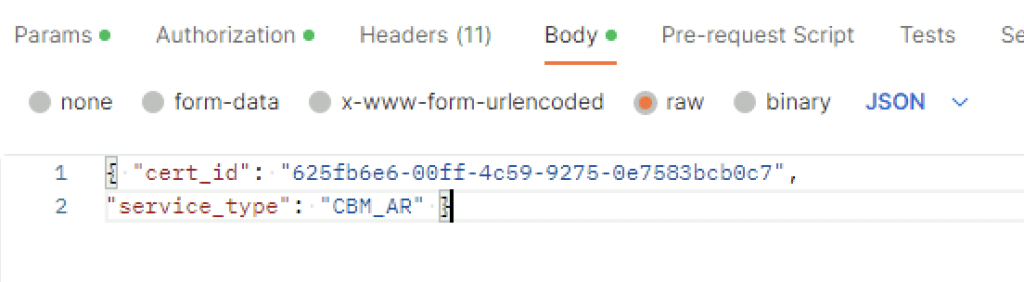

In the body I picked raw and added the following in

{ "cert_id": "625fb6e6-00ff-4c59-9275-0e7583bcb0c7",

"service_type": "CBM_AR" }

The cert ID is from the certificate I generated earlier. ex

Form data for replacing AR Corfu certificate in NSX, including cert ID and service type.

Once I clicked send I was presented back with a 200 OK

API response showing 200 OK status, 527 B, 2.44 s latency.

Verifying and Removing the Old Certificate

Going in the web browser I can also see that the new certificate is now used and the old one doesn’t have anything assigned to it ex

Expired certificate listed under NSX API-Corfu.

The final step I did was removing the old certificate by clicking on the 3 dots to left and picking delete from the menu

Expired certificate warning, local filter, and options to delete/export/copy ID.

If other Corfu certificates have expired as well, I covered replacing the MP Corfu certificate and the cluster manager Corfu certificate in separate posts.
