Configuring VCF Operations 9 Capacity Calculations to Consider 90 Days of Usage

As a solutions architect managing a VCF 9 Operations instance, one of the first things I tune after initial deployment is the capacity engine. Out of the box, VCF Operations uses an exponential decay model that heavily weights the most recent data points. That is great for catching sudden spikes, but it can misrepresent your true capacity posture if your environment has cyclical workloads — think month-end batch jobs, quarterly reporting bursts, or seasonal traffic patterns.

If your planning cycles are based on 90 days of usage, you need to make sure the capacity engine’s projections actually reflect that window. In this post I will walk through the policy settings that influence how VCF Operations calculates capacity, and how to configure them so 90 days of historical utilization are meaningfully represented in the results.

Note on naming: VCF Operations 9 is the successor to VMware Aria Operations (formerly vRealize Operations). If you are upgrading from Aria Operations, the same policy concepts apply but some UI labels may differ.

Why 90 Days Matters

Most enterprise procurement and capacity planning processes operate on a quarterly cadence. When leadership asks “do we need to buy more hosts next quarter?”, the answer needs to be rooted in at least 90 days of observed demand — not just the last week of usage.

By default, the VCF Operations capacity engine:

• Uses an exponential decay window for historical data, which means it considers all available history but gives significantly more weight to recent data points.
• Projects 1 year into the future for trend analysis.
• Calculates Capacity Remaining based on the projected peak usage over the next 3 days.
• Determines Recommended Size by looking at the maximum projected utilization from now until 30 days past the warning threshold.

The problem? If you had a one-time spike last Tuesday, the decay model may over-represent that event. Conversely, if you had a massive batch processing window 60 days ago that will repeat, the decay model may under-represent it. We need to tune the policy so the engine balances both recent and historical data appropriately.

Step 1 — Clone Your Base Policy

Never modify the default vSphere Solution policy directly. Always clone it first so your customizations survive product upgrades.

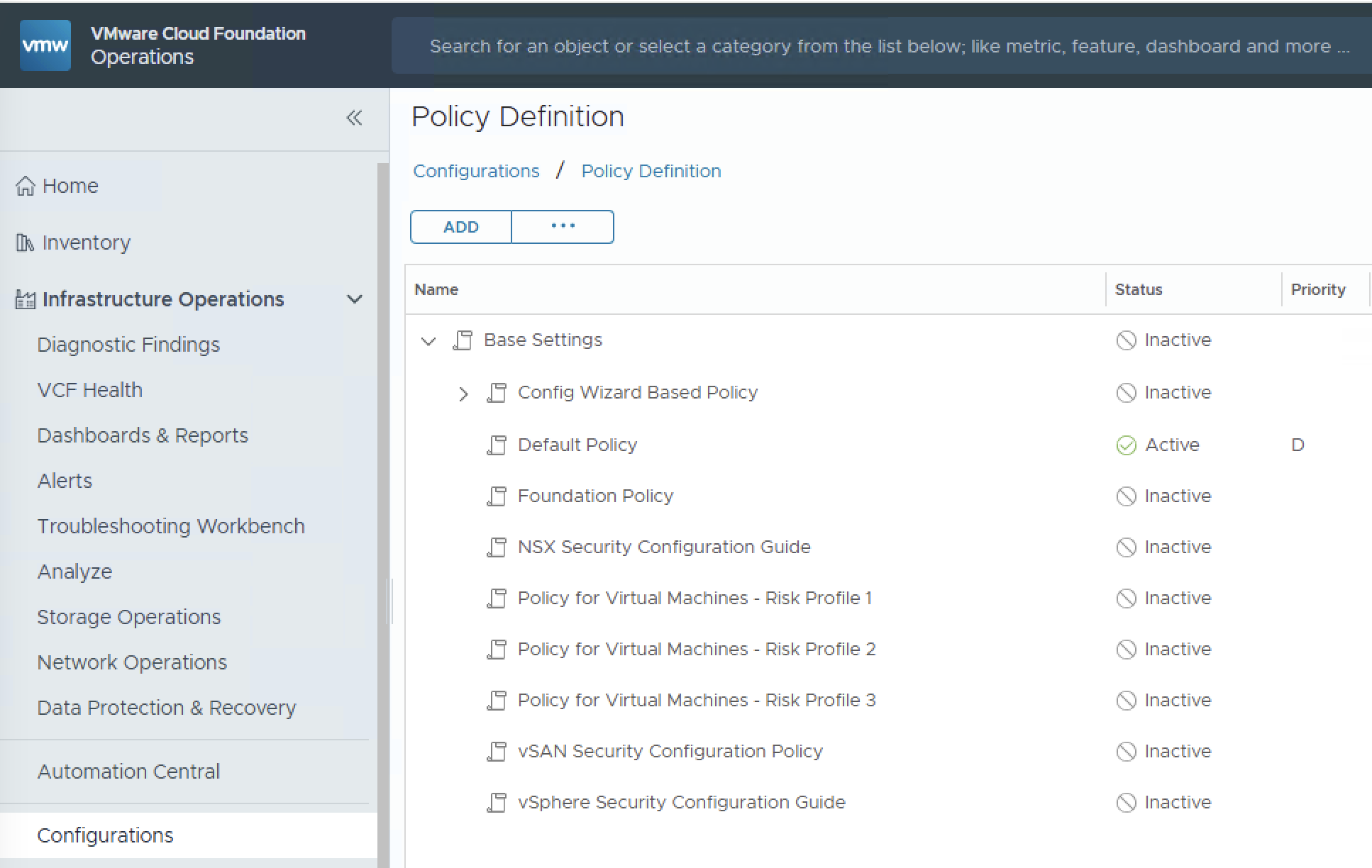

1. Navigate to Infrastructure Operations > Configuration > Policies.
2. Click ADD to create a new policy.
3. Select vSphere Solution’s Default Policy (VCF Operations) as the base policy to inherit from.

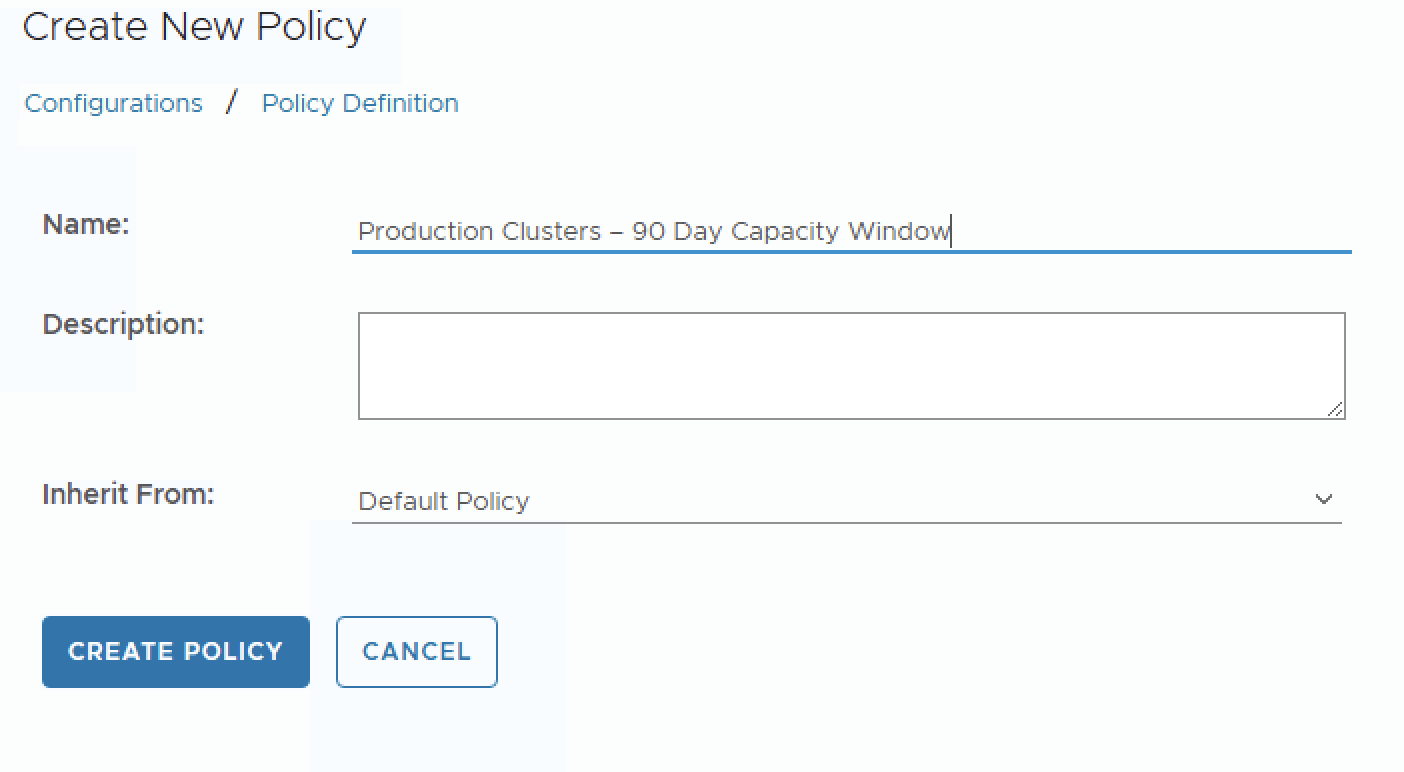

4. Name it something descriptive, e.g., Production Clusters – 90 Day Capacity Window.
5. Click CREATE POLICY.

Tip: Create separate policies for production and non-production workloads. Production should use conservative settings while dev/test can safely use aggressive settings.

Step 2 — Configure the Capacity Settings

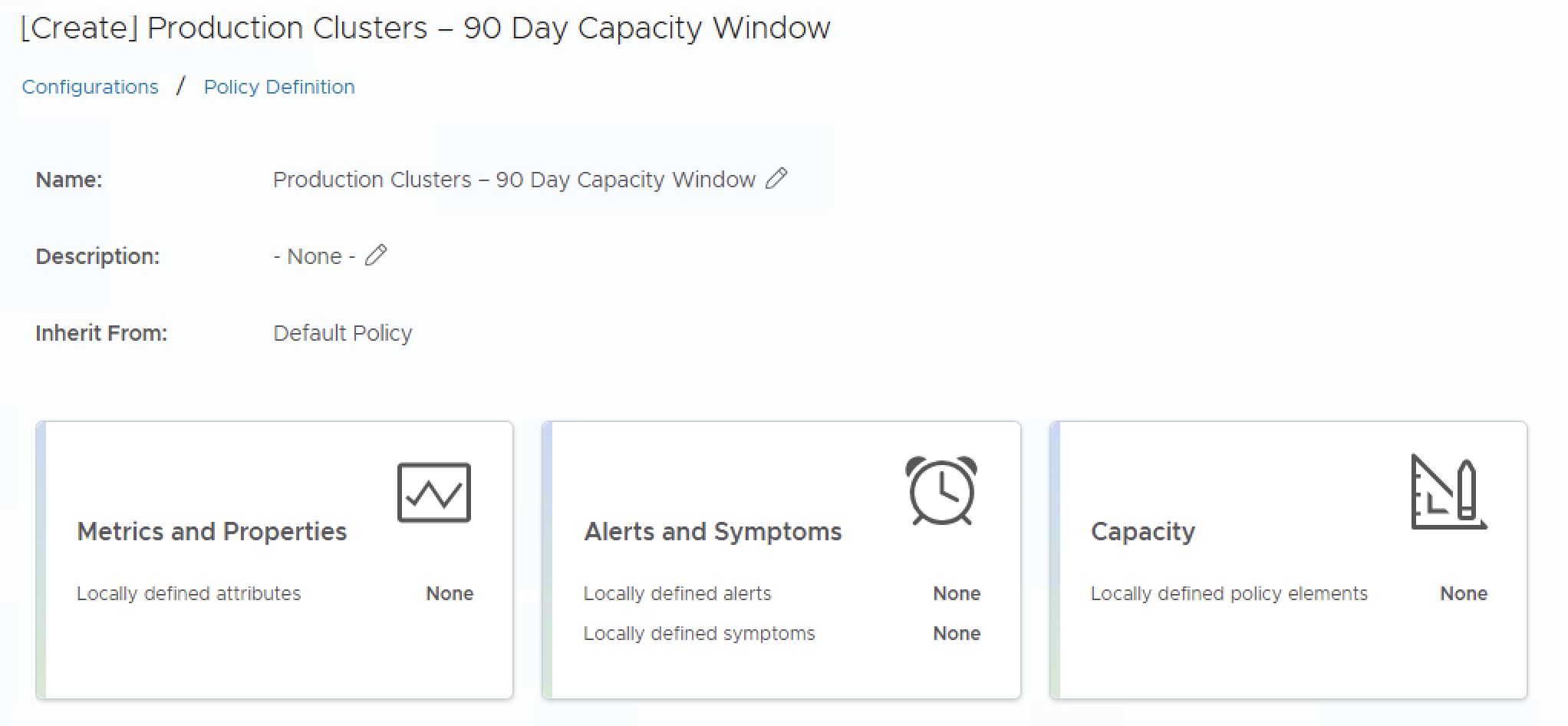

Once inside the policy, navigate to the Capacity settings section. This is where we align the engine with our 90-day planning horizon.

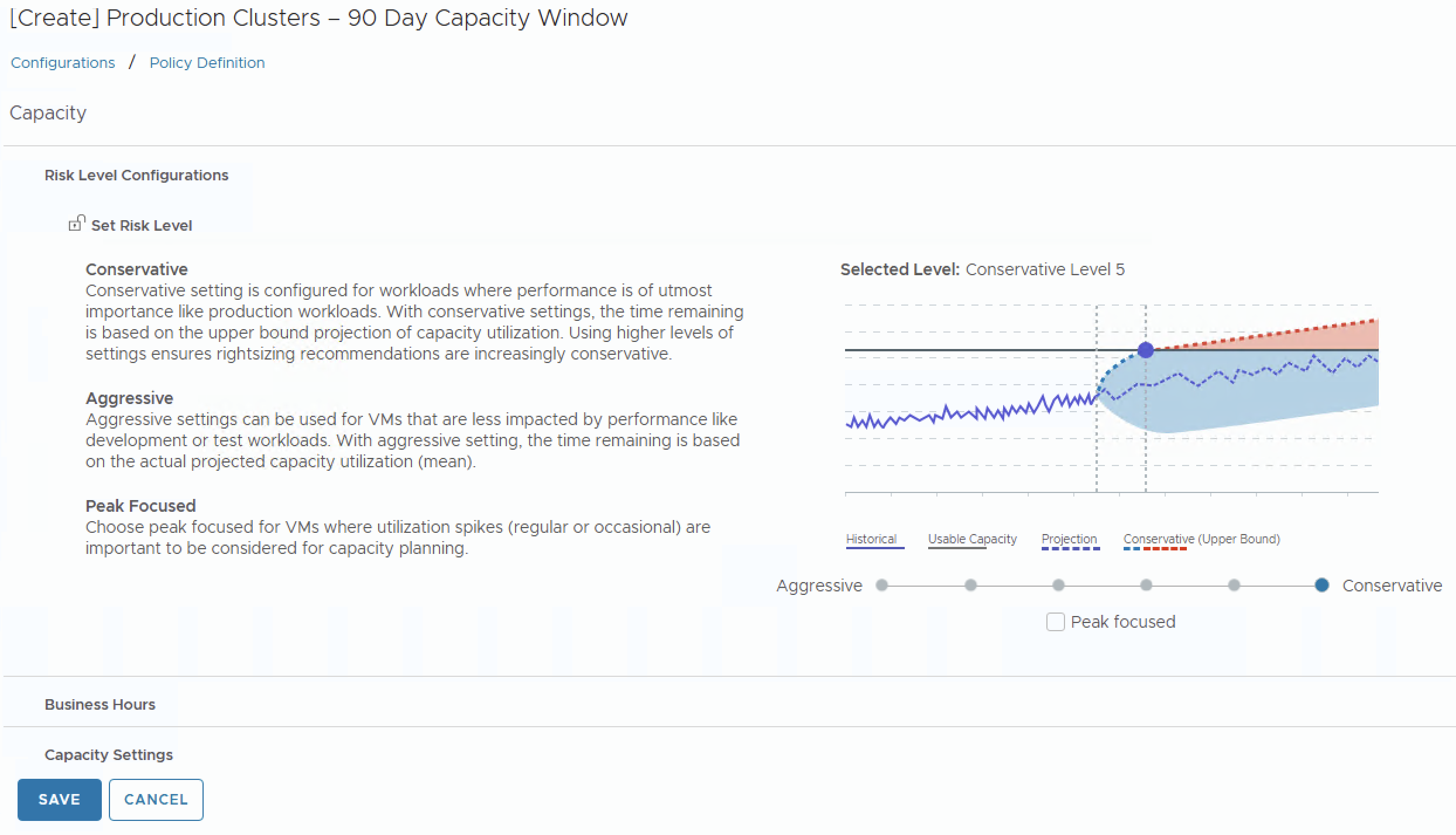

Risk Level: Conservative vs. Aggressive

This setting directly affects how the engine interprets historical data:

• Conservative — Uses the upper bound of the projected utilization range. This means the engine will factor in higher peaks from your 90-day history and project them forward. Use this for production.
• Aggressive — Uses the mean of the upper and lower bound projections. This smooths out peaks but can underestimate future demand. Use this for dev/test environments where higher utilization is acceptable.

For a 90-day capacity planning model, set this to Conservative. This ensures that the periodic spikes captured within that 90-day window are not averaged away.

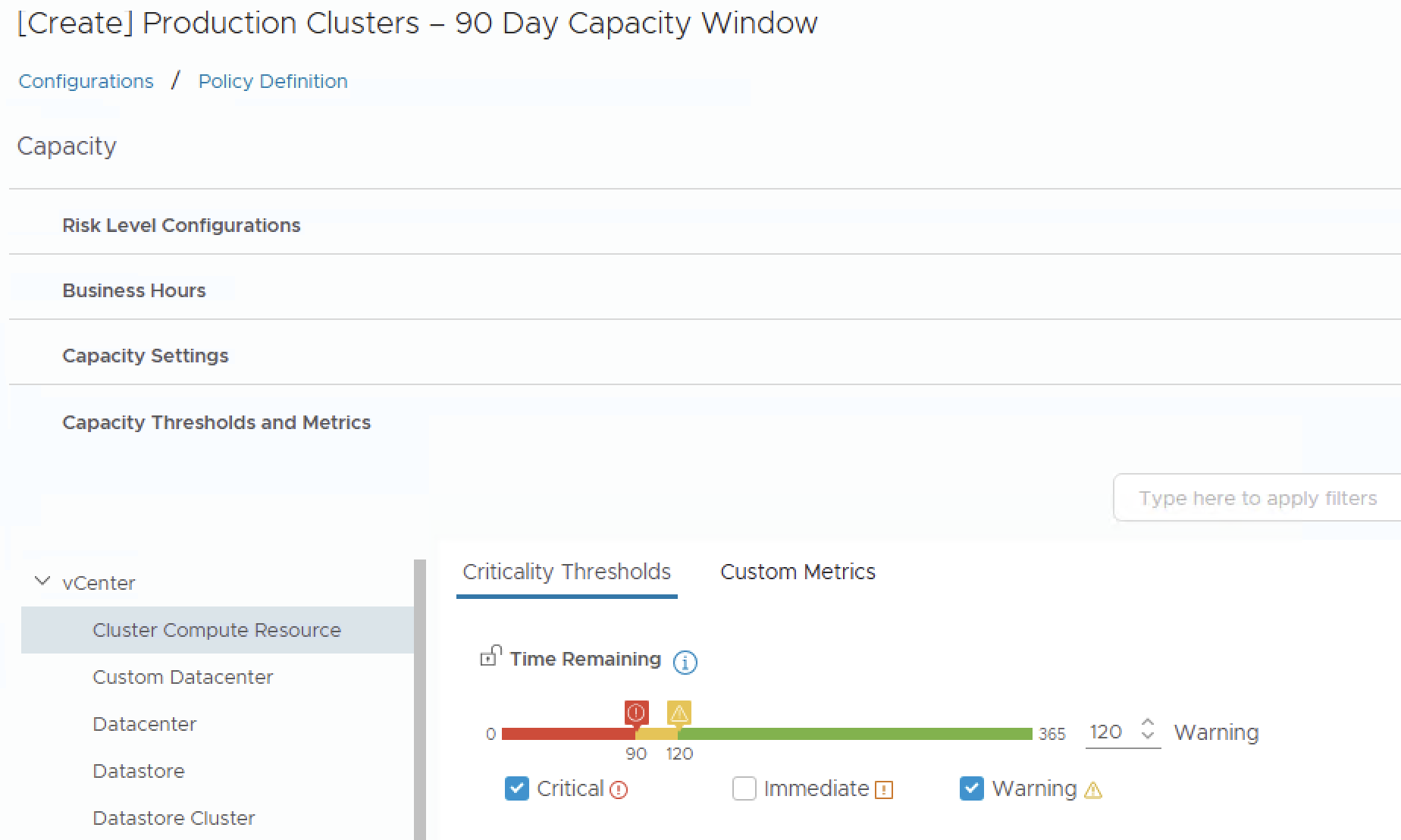

Time Remaining Thresholds

These thresholds define when VCF Operations triggers capacity alerts. Align them with your 90-day planning cycle:

Setting the Critical threshold to 90 days means that when the capacity engine projects resource exhaustion within the next 90 days, you will receive a critical alert — directly aligning the tool with your procurement lead time.

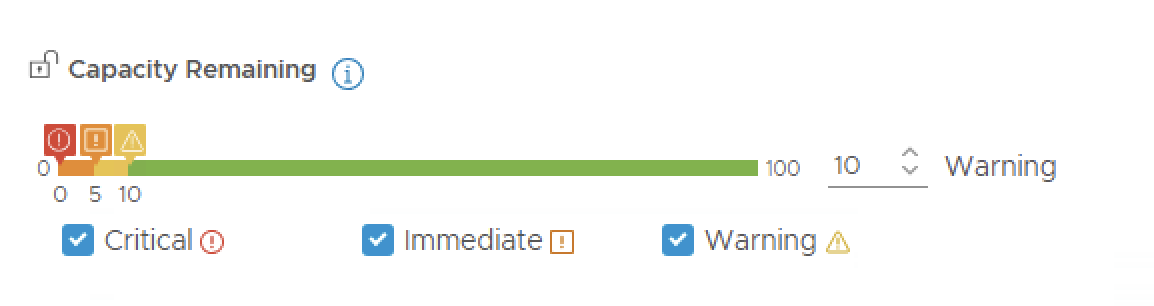

Capacity Buffers

Capacity buffers reserve a percentage of total usable capacity as headroom. These are subtracted from the total before usage percentages are calculated:

These buffers ensure that when the engine says you have 90 days of capacity remaining, it actually means 90 days with comfortable headroom — not 90 days until the cluster is at 100% and VMs start ballooning.

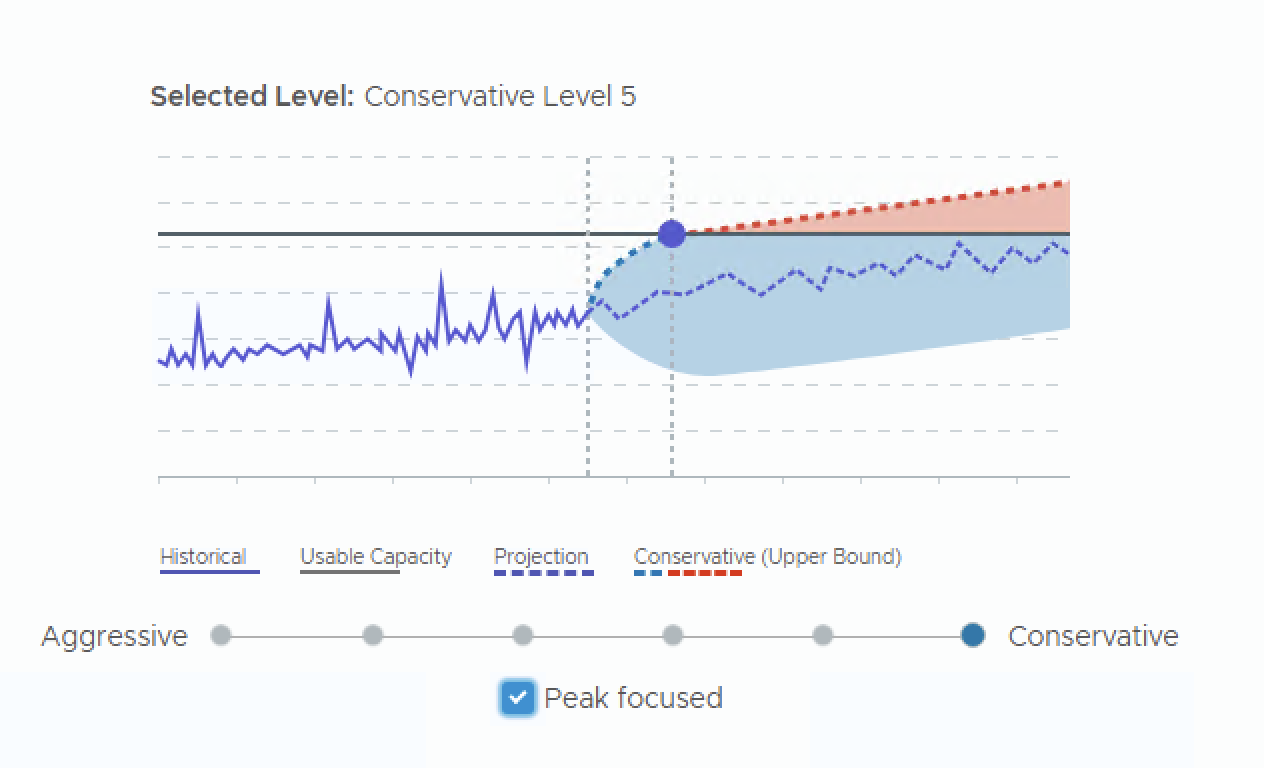

Peak Focused Setting

If your environment has significant periodic peaks (month-end processing, backup windows, etc.), enable the Peak Focused setting. This tells the capacity engine to give higher weight to utilization spikes when projecting future needs. Combined with the Conservative risk level and a 90-day critical threshold, this creates a capacity model that respects your historical peak demand patterns.

Step 3 — Exclude Anomalous Time Ranges

VCF Operations 9 allows you to exclude specific time ranges from capacity projections. This is critical for maintaining accuracy in your 90-day model.

If your environment experienced a non-recurring event within the last 90 days — a one-time data migration, a runaway process, a stress test — those data points will skew your projections. Rather than letting that anomaly inflate your capacity forecast:

1. In the Policy workspace, look for Capacity > Exclude Time Ranges (or the equivalent anomaly exclusion option in your VCF 9 build).
2. Add the specific date and time range of the anomalous event.
3. Save the policy.

The engine will ignore those data points, giving you a clean 90-day utilization picture based on normal operational patterns.

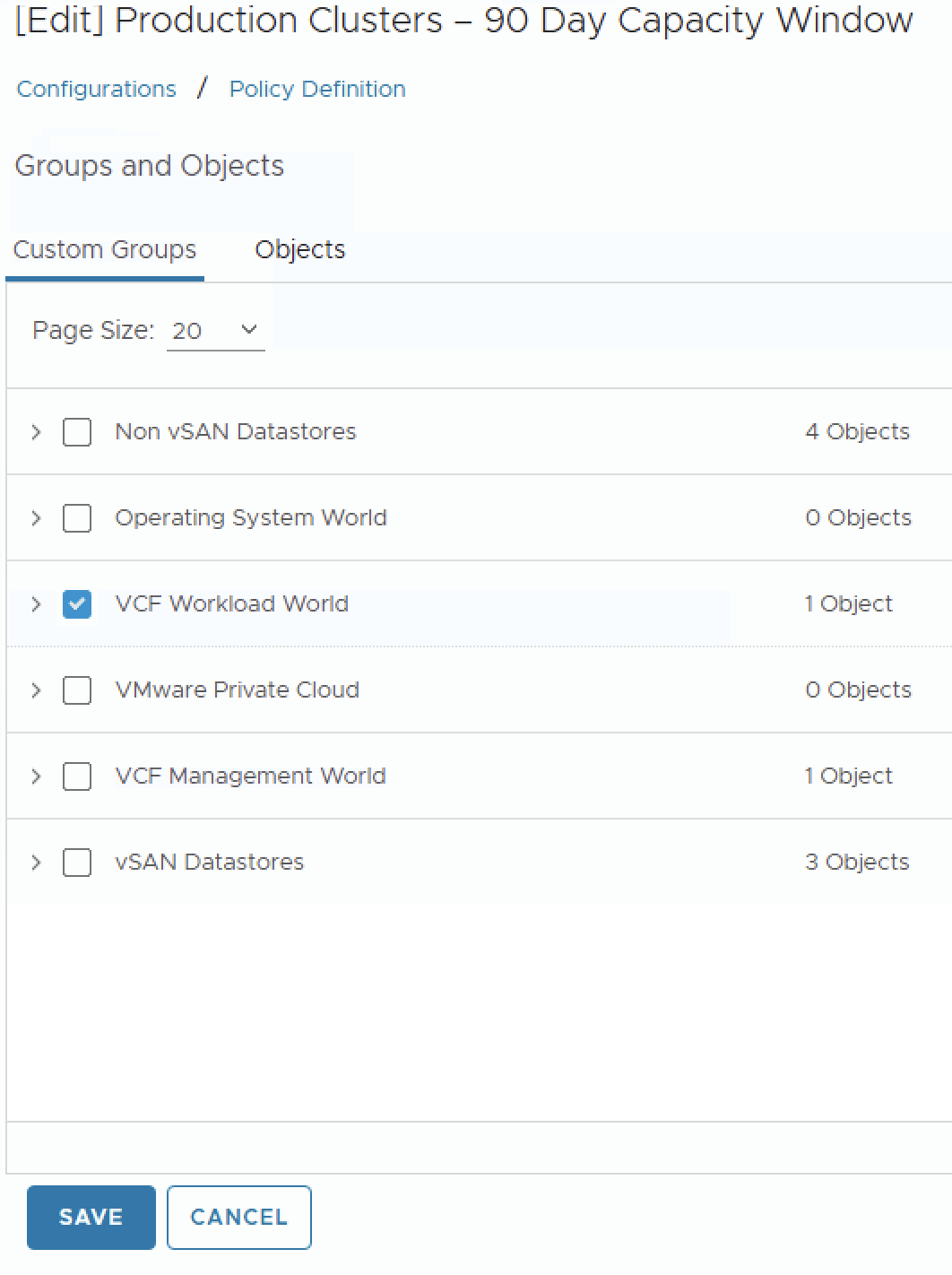

Step 4 — Apply the Policy to Your Clusters

The policy only takes effect when it is attached to the correct objects:

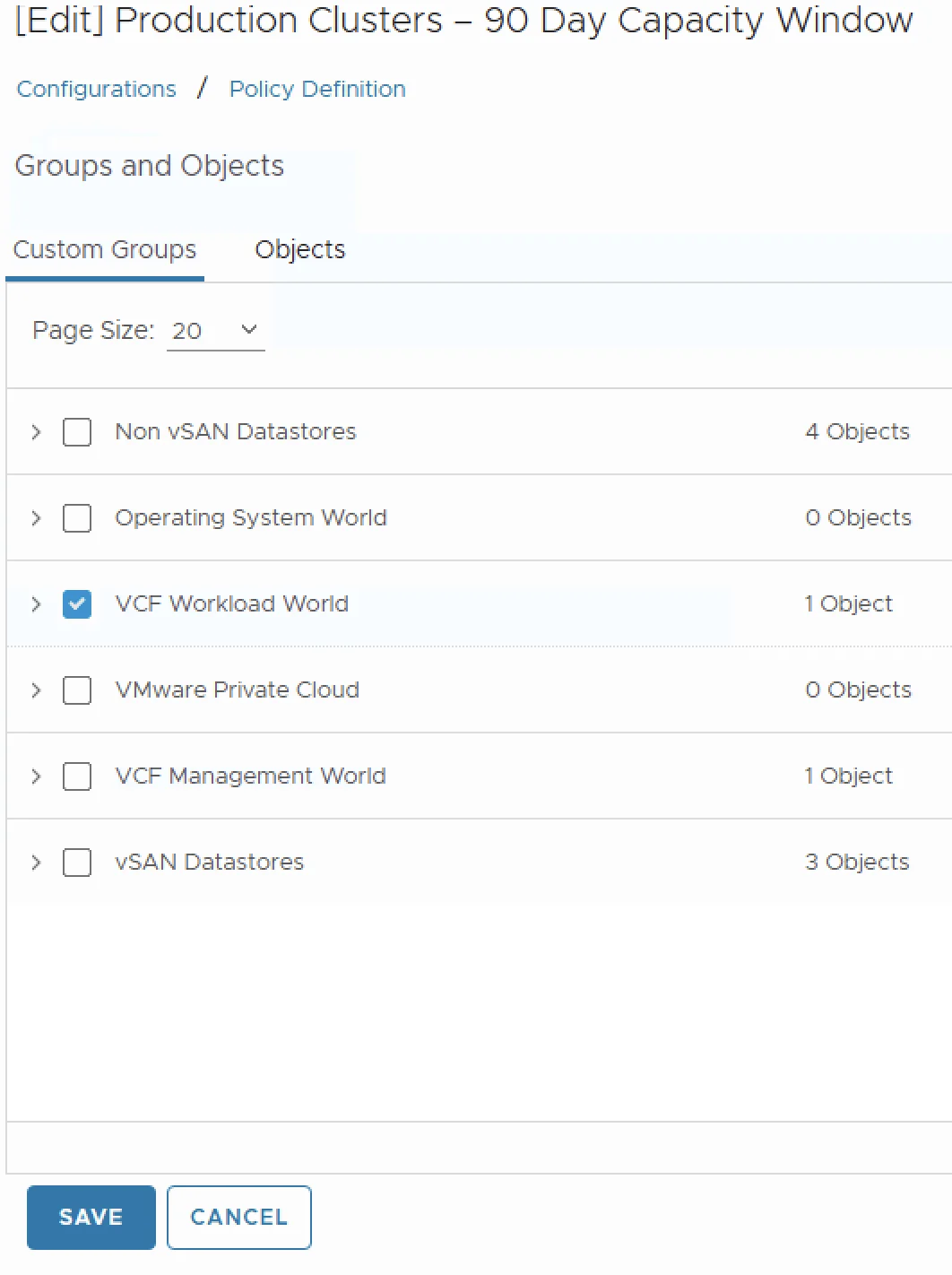

1. Still in the Policy workspace, navigate to the Groups section.
2. Apply the policy to a Custom Group or directly to your production vSphere clusters.
3. If you have not created a Custom Group yet, go to Infrastructure Operations > Configuration > Custom Groups and create one that includes your production clusters.

Important: Policy precedence matters. If multiple policies apply to the same object, the most specific one wins. Verify your policy is the active one for the target clusters by checking Policies > Active Policies.

Step 5 — Validate the Configuration

After applying the policy, wait for at least one full collection cycle (typically 5 minutes) and then validate:

1. Navigate to Infrastructure Operations > Optimize > Capacity.
2. Select one of your production clusters.
3. Review the Time Remaining and Capacity Remaining metrics. They should now reflect the configured thresholds (warning at 120 days, critical at 90 days).
4. Check the Demand Trend chart — the projection curve should show a conservative (upper bound) trend line that accounts for historical peaks.

If the values look unreasonably aggressive or conservative, revisit your buffer percentages and risk level settings.

Bringing It All Together

Here is a summary of the full configuration for a 90-day capacity planning model:

Why This Matters Beyond Dashboards

Getting the capacity engine right is not about making the dashboards look green. It is about answering the question your CTO is going to ask: “Will we run out of capacity before our next hardware refresh?”

With a 90-day model you can:

• Justify hardware purchases with data rooted in 90 days of real demand, not just last week’s averages.
• Catch cyclical patterns that shorter windows miss — month-end, quarter-end, year-end processing.
• Reduce overprovisioning by using conservative projections that account for peaks without panic-buying.
• Align IT and finance by speaking the same quarterly language.

References (VCF 9)

• Broadcom TechDocs — Optimizing Capacity and Improving Performance in VMware Aria Operations
• Broadcom TechDocs — Configuring Policies
• Brock Peterson — Finding Capacity with VCF Operations
• Brock Peterson — VMware Aria Operations Policies
